Manufacturer: DataLink
Model: RSCV-S Series

Features

• Supports RS232C to RS530 signal conversion for versatile device connectivity
• Operates with an external AC adapter (sold separately) or receives power from pins 9 and 14 of the RS232C port
• Features a Dsub25 male RS232C connector with M2.6 x 6 male mounting screw
• Equipped with a Dsub25 female RS422 connector and M2.6 x 6 female mounting screw

Specifications

◆RS232C ⇋ RS422 converter

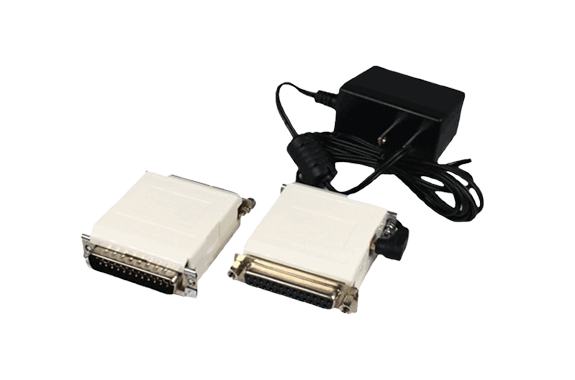

• The RSCV series is a compact and lightweight RS232C to RS422 converter designed in a connector-sized format
• It converts RS232C signal levels to RS422 signal levels, enabling seamless connection between RS232C and RS422 devices
• Supports communication distances of up to 1200 meters between RS232C and RS422 devices
• Available in models with or without power supply requirements and with optional isolation functions
• Complies with the RoHS directive for environmentally conscious design

◆External Dimensions
