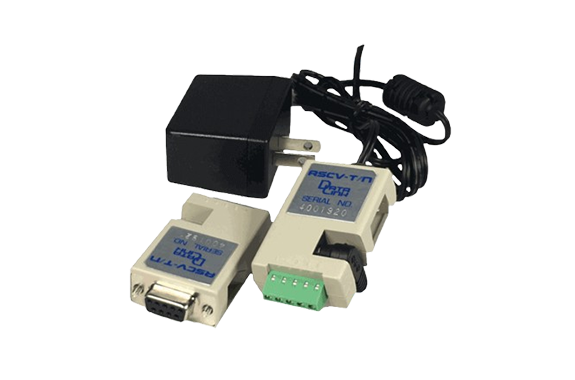

RSCV-T/N RS232C⇋RS422 Converter

Datalink RSCV-T/N Series RS232C/RS422 Conversion Connector

Manufacturer: DataLink
Model: RSCV-T/N Series

Features

Supports RS232C to RS422 conversion without requiring an external power source by drawing power from the RS232C signal line
Optional AC adapter is available for alternative power supply
Equipped with a Dsub9 female RS232C connector with #4-40 UNC inch mounting screw
Features a compact 5-pin terminal block for RS422 connections

RS232C side
Dsub9 female
(DCE arrangement)

RS422 side
5P small terminal block

No power supply

Maximum communication speed
115.2Kbps

—

The RSCV series is a compact and lightweight RS232C to RS422 converter designed in a connector-sized format
It converts RS232C signal levels to RS422 signal levels, enabling seamless connection between RS232C and RS422 devices
Supports communication distances of up to 1200 meters between RS232C and RS422 devices
Available in models with or without power supply requirements and with optional isolation functions
Complies with the RoHS directive for environmentally conscious design

Model	RSCV-T/N
Maximum communication speed	115.2Kbps
Converted Signal	TXD/RXD
External dimensions (mm)	W33/H16.5/D63.5
Weight (g)	Approximately 25g
Maximum Transmission Distance	—
Current consumption (maximum at 5V)	25mA or less / 5V
Insulation Function	—
RS232C side	Dsub9 pin female
RS422 side	5P small terminal block
Power supply	Power can be taken from the RS232C signal line or by using an optional AC adapter.
Noise Countermeasures	—
