RSCV-T/P RS232C⇋RS422 Converter

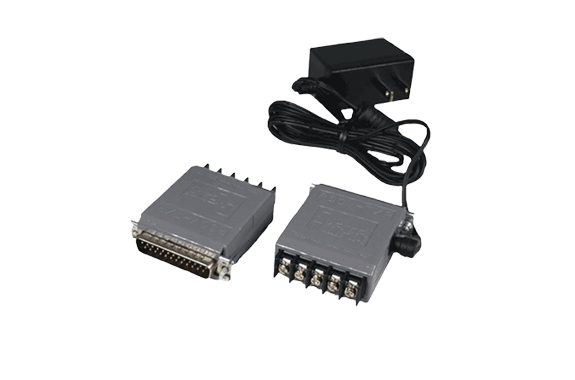

Datalink RSCV-T/P Series RS232C/RS422 Conversion (RS232C extender) Connector Set

Manufacturer: DataLink
Model: RSCV-T/P Series

Features

Provides RS232C to RS422 conversion for stable and extended communication
Operates with an external AC adapter included as standard or receives power through pins 9 and 14 of the RS232C port
Equipped with a Dsub25 male RS232C connector with M2.6 x 6 male mounting screw
Features a 5-pin terminal block for RS422 connections

RS232C side
Dsub25 male
(DCE arrangement)

RS422 side
5P terminal block

Power supply
RS232C pins 9/14

Maximum communication speed
115.2Kbps

Maximum transmission distance
1200m

—

Insulation Function

The RSCV series is a compact and lightweight RS232C to RS422 converter designed in a connector-sized format
It converts RS232C signal levels to RS422 signal levels, enabling seamless connection between RS232C and RS422 devices
Supports communication distances of up to 1200 meters between RS232C and RS422 devices
Available in models with or without power supply requirements and with optional isolation functions
Complies with the RoHS directive for environmentally conscious design

Model	RSCV-T/P
Maximum communication speed	115.2Kbps
Converted Signal	TXD/RXD
External dimensions (mm)	W53/H19/D64
Weight (g)	Approximately 46g
Maximum Transmission Distance	1200m
Current consumption (maximum at 5V)	70mA or less / 5V
Insulation Function	can be
RS232C side	Dsub 25 pin male
RS422 side	5P terminal block
Power supply	AC adapter included as standard or supplied via pins 9/14
Noise Countermeasures	Photocoupler
