Datalink Corporation

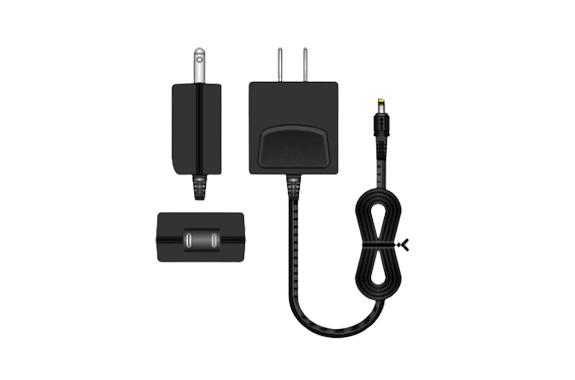

Datalink Spu10-102 Series AC Adapter
Manufacturer: DataLink
Model: Spu10-102 Series
Features
- Spu10-102 is a standard AC adapter model.
- The AC adapters, whether sold separately or included, may be substituted with equivalent products.
- This adapter is used as a standard accessory for the product Enet-HDLC-RoHS.
Specifications
| Item | Details |
|---|---|
| Operating Conditions | Temperature: +0°C to +40°C Humidity: +20% to 80% RH (non-condensing) |
| Storage Conditions | Temperature: -40°C to +70°C Humidity: +20% to 80% RH (non-condensing) |
| Dimensions | Width: 44 mm Height: 27.5 mm Depth: 56 mm (excluding AC socket and cord) Cord Length: 1280 mm (excluding DC plug) |
| Weight | Approx. 75g ±10g |
| Rating | Input: Universal AC90V to 264V, 47/63Hz Output: DC5V – 6.0V / 1.60A – 1.33A |
| Output Plug | EIAJ Type2 Center Positive |
| Certifications | UL, CE, FCC, PSE, CEC, RoHS2 |
