Manufacturer: DataLink

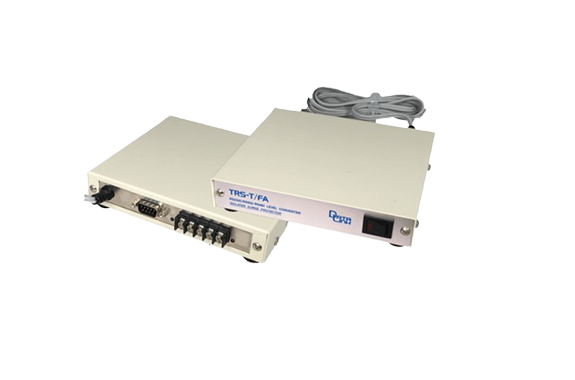

Model: TRS-T/FA Series

Features

• TRS-T and TRS-T-RoHS models can be directly replaced with the TRS-T/FA.This RoHS-compliant model is designed for FA environments and includes enhanced protection against lightning surges and static electricity.
  (RS422 and RS485 interfaces meet IEC standard test level 4.)

• It is suitable for harsh operating environments with extreme temperature fluctuations, offering an operating temperature range of -20℃ to +70℃, moisture-proof
  and condensation-resistant design, and dust-proof construction.
• The RS232C side features a Dsub9-pin male connector with selectable DTE/DCE configuration via dip switch.
• The RS422/RS485 side uses a 5-pin terminal block and supports 2-wire or 4-wire multi-drop connections, with RTS/DTR-based transmission and reception control also selectable by dip switch.
• It supports communication speeds up to 116Kbps, a maximum cable extension of 1200 meters, and connection of up to 32 devices.
• A wide-range compatible power supply is built-in, supporting input voltages from AC85V to AC264V.
• The product comes with a 5-year free warranty for added reliability.
• DIN rail mounting is possible using an optional DIN rail bracket.

Specifications

◆ Comparison with other models
