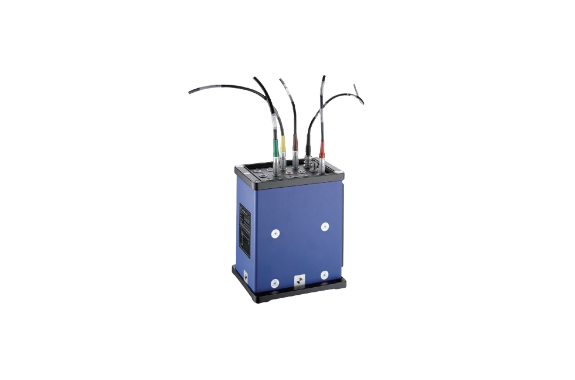

Deicy ADMA-G-PRO+ High-Precision Inertial Sensor For Vehicle Behavior Measurement
Manufacturer: DEICY Co., Ltd.
Model: ADMA-G-PRO+
Features
- Outputs 3-axis vehicle behavior, speed, and position data
- Fastest 1kHz data output
- Data latency < 1 ms
Specifications
| Measurement/Component | Description |
|---|---|
| Gyro / Measurement range and resolution | 3 x Closed-loop Fiber Optic Gyros, measurement range ±320°/sec, 0.00004°/sec (roll/pitch/yaw) |
| In-run Bias | 0.1°/hour (typical) |
| Gyro Noise | 0.12°/√h |
| Scale Factor Accuracy | ≤0.1%, 0.05% (typical) |
| Sensor bandwidth | 8000 Hz |
| Accelerometer / Measurement range and resolution | 3 x Servo Accelerometers, ±5 g, <1 mg (no Kalman filter correction) |
| In-run Bias | 10 µg (1 σ, typical) |
| Scale Factor Stability | 0.015% (1 σ) |
| Digitized resolution | 100 µg |
| Sensor bandwidth | 500 Hz |
| GPS Position Accuracy | 0.01/0.2/0.4/0.6/1.2/1.5 m (RMS, varies by GPS receiver model) |
| GPS Data Update Rate | 50ms (20ms to 1ms if interpolated) |
