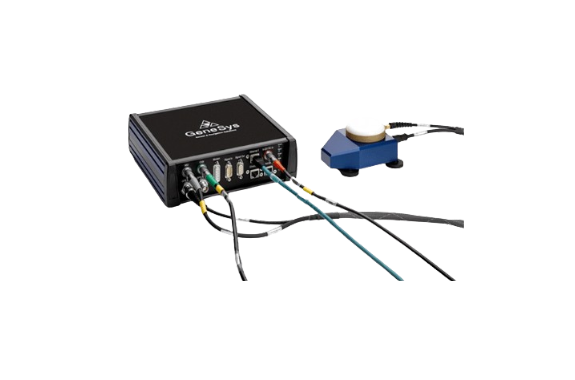

Deicy ADMA-SPEED GPS Speed Sensor
Manufacturer: DEICY Co., Ltd.
Model: ADMA-SPEED
Features
- The GPS antenna and inertial sensor parts are integrated, making installation easier.
- Mounted on the vehicle roof using a magnet.
- Pitch angle correction caused by brake operation.
Specifications
| Specification | NG2i | NG3i | NG4i |
|---|---|---|---|
| Measurement Range | ±10° | ±30° | ±80° |
| Sensitivity | 0.8mA/° | 0.266mA/° | 0.1mA/° |
| Resolution | < 0.001° | < 0.003° | < 0.01° |
| Nonlinearity | 0.02° | 0.06° | 0.16° |
| Cross-axis Sensitivity | < 0.5% (45° inclination) | < 0.1% (45° inclination) | < 0.1% (45° inclination) |
| Response Time | Approx. 0.3 sec. | Approx. 0.3 sec. | Approx. 0.3 sec. |
| Temperature Drift | Approx. ±0.01%/°C | Approx. ±0.01%/°C | Approx. ±0.01%/°C |
| Zero Drift | Approx. ±10°/°C | Approx. ±10°/°C | Approx. ±10°/°C |
| Power Supply | Ubz=10～30V DC | Ubz=10～30V DC | Ubz=10～30V DC |
| Power Consumption | Approx. 40mA (Ub=5V) | Approx. 40mA (Ub=5V) | Approx. 40mA (Ub=5V) |
| Case Protection Rating | IP65 | IP65 | IP65 |
| Operating Temperature Range | –40°C～+85°C | –40°C～+85°C | –40°C～+85°C |
| Surrounding Temperature Range | –45°C～+90°C | –45°C～+90°C | –45°C～+90°C |
| Weight (without cable) | Approx. 110g | Approx. 110g | Approx. 110g |
| Housing Material | Reinforced Glass Fiber Reinforced Plastic | Reinforced Glass Fiber Reinforced Plastic | Reinforced Glass Fiber Reinforced Plastic |
| Connection Cable | Ø4.6mm × 1.0m Shielded Cable | Ø4.6mm × 1.0m Shielded Cable | Ø4.6mm × 1.0m Shielded Cable |
