DEICY

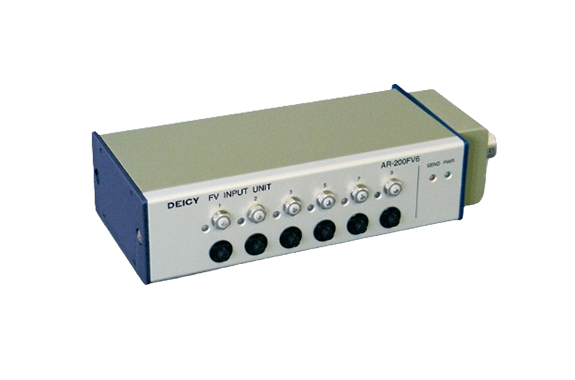

Deicy AR-200FV6 6ch FV/Pulse Count Unit
Manufacturer: DEICY Co., Ltd.
Model: AR-200FV6
Features
- This unit for the SR-200 series allows you to switch and set the FV amplifier/pulse counter functions for each channel.
- 6ch allows simultaneous input of 4-wheel speed and engine RPM.
- Each channel is equipped with an LED for monitoring the input level and an adjustment trimmer.
Specifications
| Item | Specification |
|---|---|
| Number of channels | 6 ch (Ch1 is dedicated to TTL/electromagnetic coupler) |
| Input | TTL / AC |
| Connector | Binder 4-pin |
| Sensor power supply | +5 V max 30 mA, +12 V max 100 mA, total max 100 mA |
| Functions | Input frequency division, smoothing |
