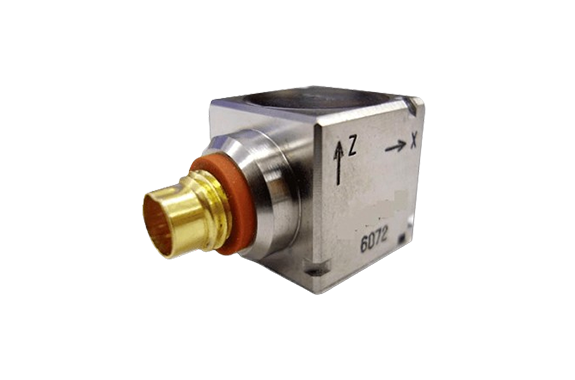

Deicy ATP-216TI-3 / ATP-216TIL-3 3-axis Cubic Type
Manufacturer: DEICY Co., Ltd.
Model: ATP-216TI-3 / ATP-216TIL-3
Features
- This has a size of 14.2mm square and a mass of 11.1g.
- Low cost, 3-axis amplifier built-in piezoelectric type
- Two types are available: sensitivity 10mV/m/s^2, maximum acceleration 400m/s^2 (ATP-216TI-3),
sensitivity 1mV/m/s^2, maximum acceleration 4000m/s^2 (ATP-216TIL-3). - Sensor cable 3m CK-75-3
Specifications
| Model | ATP-216TI-3 | ATP-216TIL-3 |
|---|---|---|
| Purpose | Measurement, Small Type | Measurement, Small Type |
| Case Construction | Case Ground | Case Ground |
| Rotation | 10 | 10 |
| Sensitivity (mV/ms²) | 1 | 1 |
| Max Acceleration (m/s²) | 400 | 4,000 |
| Frequency Range (Hz ± 3dB) | 1 to 8,000 | 1 to 8,000 |
| Base Noise (μ Vrms) | 35 | 35 |
| Operating Temperature Range (°C) | -50 to +110 | -50 to +110 |
| Weight (g) | 11.1 | 11.1 |
| Constant Current (mA)(V) | 0.5 to 10 | 0.5 to 10 |
| Method | Shear Type | Shear Type |
| Cable Direction | Horizontal | Horizontal |
| Connector | DR-4S-4 | DR-4S-4 |
| Attachment Method | M50x0.8×3.5 Metal | M50x0.8×3.5 Metal |
| Case Material | Titanium Ti-64L-4V | Titanium Ti-64L-4V |
| Dimensions (mm) | 14.2 x 14.2 x 14.2 | 14.2 x 14.2 x 14.2 |
| Applicable Cable (Cable Length, Cable Heat Resistance) | CK-75-3 BNC Plug, M3NUNF10-32×3, SA-12ZSC-03 10m Cable | CK-75-3 BNC Plug, M3NUNF10-32×3, SA-12ZSC-03 10m Cable |
| Mount Adapter | MH-20L-M5, Non-insulated Type Magnetic Holder | SA12ZSC-02, Dedicated Plastic Mount Base 5 Pieces/Pack |
