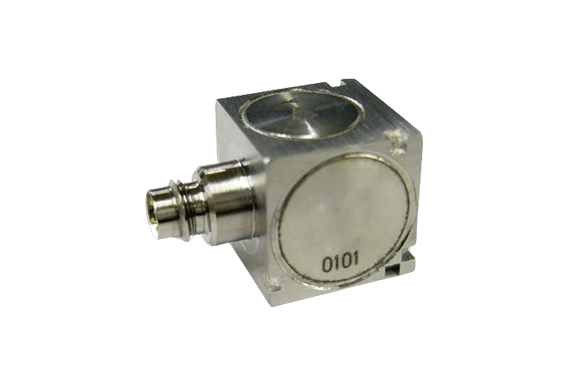

Deicy ATP-316-3 3-axis Compact And Lightweight Cubic Type
Manufacturer: DEICY Co., Ltd.
Model: ATP-316-3
Features
- This has a 10mm square and a mass of 4.4g.
- Sensitivity 1mV/m/s^2, maximum acceleration 5000m/s^2
- Low noise with base noise of 20uVrms
- Sensor cable: 3m CK-85B/M-3, 5m CK-85B/M-5, 10m CK-85B/M-10 (B is BNC, M is miniature UNF10-32)
Specifications
| Model | ATP-316-3 |
|---|---|
| Purpose | Measurement, Small Type |
| Case Construction | Case Ground |
| Rotation | 3 |
| Sensitivity (mV/ms²) | 1 |
| Max Acceleration (m/s²) | 5,000 |
| Frequency Range (Hz ± 3dB) | 2 to 10,000 |
| Base Noise (μ Vrms) | 55 |
| Operating Temperature Range (°C) | -50 to +120 (± 5mA DC current) |
| Weight (g) | 4.4 |
| Constant Current (mA)(V) | 2 to 10 |
| Method | Shear Type |
| Cable Direction | Horizontal |
| Connector | CZ664 |
| Attachment Method | M30x0.5×2 Metal |
| Case Material | Titanium Ti-64L-4V |
| Dimensions (mm) | 10 x 10 x 10 |
| Applicable Cable (Cable Length, Cable Heat Resistance) | CK-85B-3 BNC Plug (3m Cable) / CK-85M-3 Miniature UNF10-32×3 |
| Mount Adapter | SA11ZSC-02, Dedicated Plastic Mount Base 5 Pieces/Pack |
