DEICY

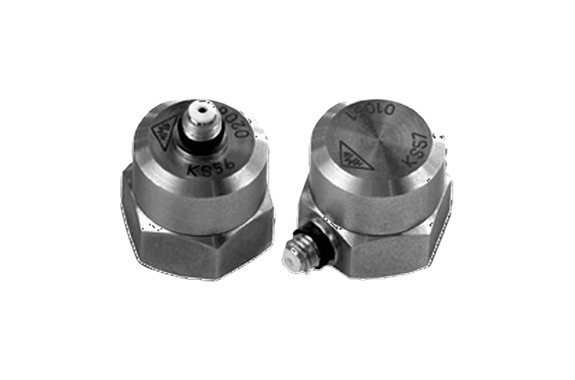

Deicy KS56 / KS57 High Temperature Type
Manufacturer: DEICY Co., Ltd.
Model: KS56 / KS57
Features
- A shear-type 1-axis charge output acceleration sensor that can be used in high-temperature environments.
- Operating temperature range: -30℃ to +250℃
- KS56 has connector head, KS57 has connector side
Specifications
| Model | KS56 | KS57 |
|---|---|---|
| Purpose | Measurement · High Temperature | Measurement · High Temperature |
| Axes | 1 | 1 |
| Sensitivity (pC/G) | 18 | 18 |
| Max Usable Acceleration (G) | 4,000 | 4,000 |
| Frequency Response (Hz ± 3dB) | 17,000 | 17,000 |
| Common Mode Frequency (kHz) | >29 (+30dB) | >29 (+30dB) |
| Operating Temperature Range (°C) | -30 ~ +250 | -30 ~ +250 |
| Weight (g) | 23 | 23 |
| Shape | Share Type | Share Type |
| Cable Direction | Upwards | Side |
| Connector | UNF10-32 | UNF10-32 |
| Attachment Method | M5 Screw | M5 Screw |
| Case Material | Stainless Steel | Stainless Steel |
| Dimensions (mm) | SW17 x 22H (Connector UNF10-32 at the top) | SW17 x 17H (Connector UNF10-32) |
| Suitable Cable | 009/T (1.5m, 200°C) · UNF10-32 (Both Ends) | 009/T (1.5m, 200°C) · UNF10-32 (Both Ends) |
