Deicy KS80D, KS81B One Axis Industrial Insulation Type
Manufacturer: DEICY Co., Ltd.
Model: KS80D, KS81B
Features
Case insulation, Binder 713 connector protection rating IP67

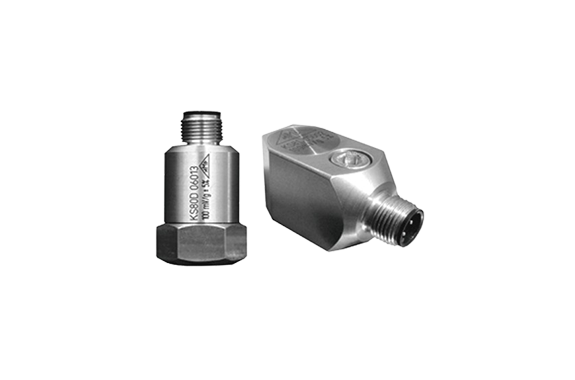

The KS80D exposes its connector at the top; meanwhile, the KS81B exposes its connector on the side, thus creating a clear structural difference between the two models.
Specifications
| Model | KS80D | KS81B |
|---|---|---|
| Purpose | Industrial Use, Vibration Sensor, IP67, EMI Protected, Stainless Steel | Industrial Use, Vibration Sensor, IP67, EMI Protected, Stainless Steel |
| Number of Axes | 1 | 1 |
| Sensitivity (mV/G) | 100 | 100 |
| Maximum Usable Acceleration (G) | 55 | 60 |
| Frequency Characteristics (Hz ± 3 dB) | 0.13 ~ 22,000 | 0.13 ~ 11,000 |
| Common Mode Frequency (Hz) | >24 (+25 dB) | >24 (+25 dB) |
| Operating Temperature Range (°C) | -20 ~ +120 | -20 ~ +120 |
| Weight (g) | 65.5 | 65.5 |
| Constant Current (mA) | 2 ~ 20 | 2 ~ 20 |
| Shape | Share Type | Share Type |
| Cable Direction | Upper Side | Side |
| Connector | Binder 713 | Binder 713 |
| Attachment Method | M8 | M8, M6 |
| Case Material | Stainless Steel | Stainless Steel |
| Dimensions (mm) | SW22 x 45H (Binder 713 Connector Included) | 45 (Binder 713 Connector Included) x 24 x 45 |
| Suitable Cable | 086G (Straight) · 086W (Angled) (5m, 85°C) · Binder 713 (PUR/Shielded IP67) · BNC (Optional) | 086G (Straight) · 086W (Angled) (5m, 85°C) · Binder 713 (PUR/Shielded IP67) · BNC (Optional) |
