Manufacturer: DEICY Co., Ltd.
Model: MHL1600 Series

Features

• 16mm diameter robust aluminum case
• 5mm diameter stainless steel shaft
• Measurement length: 50mm to 300mm
• Low axial force < 20g
• Superior Hall Effect Contactless Technology
• 5 VDC or 8 to 30 VDC power supply
• Protection class IP68/IP69K

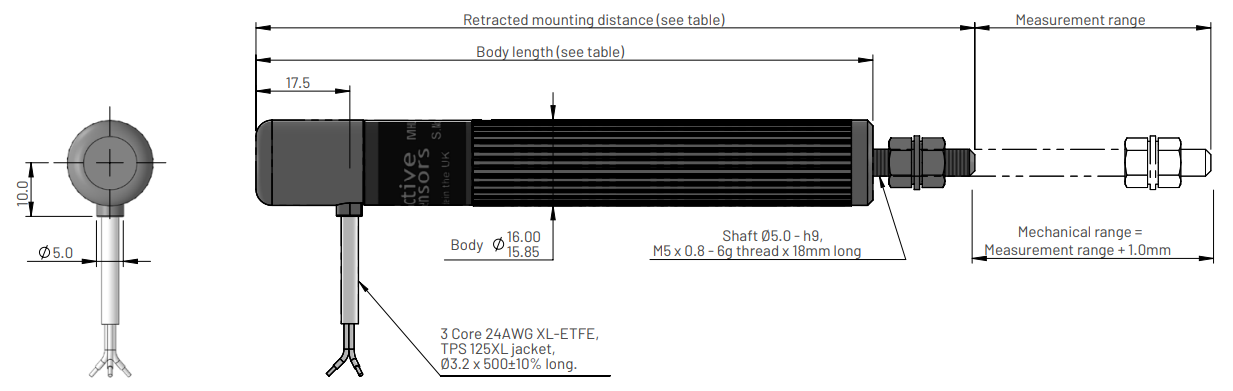

■ Dimensions for MHL1621 – Body clamp mounting

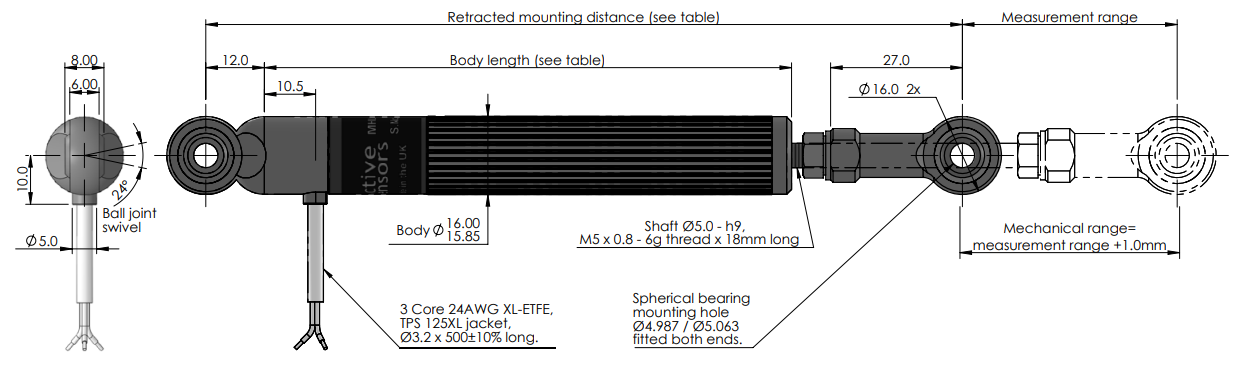

■ Dimensions for MHL1622 – Rod end mounting

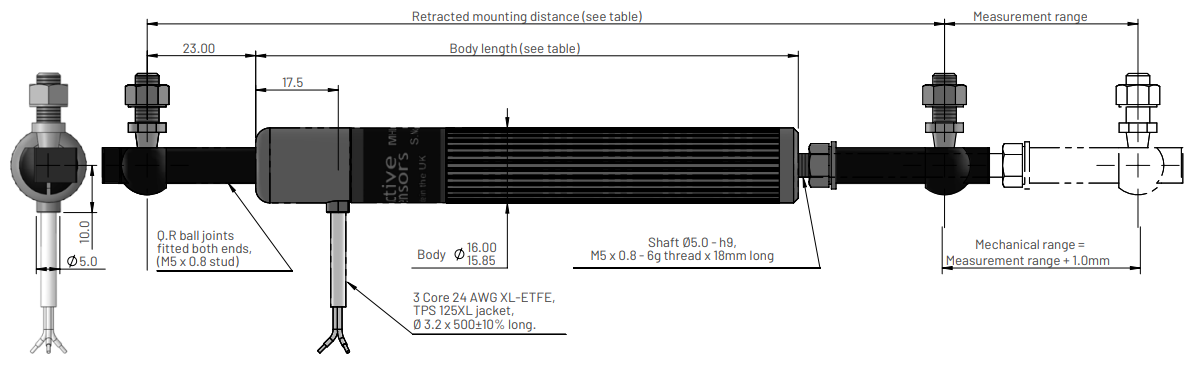

■ Dimensions for MHL1626 – Quick release ball joint
