Manufacturer: DEICY Co., Ltd.
Model: MHR5100 Series

Features

• Angle range: 20° to 360°, every 1°
• 3 types of stainless steel shafts
• Nonlinearity < 0.25%FS
• 5 VDC or 8 to 30 VDC powered
• Protection class IP68/IP69K

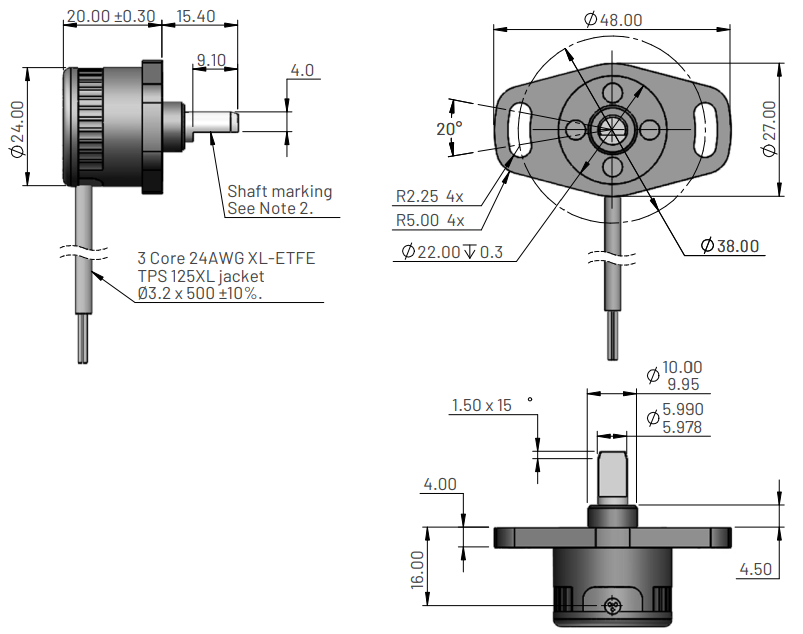

■ Dimensions for MHR5110 – Flange mounting – sprung shaft

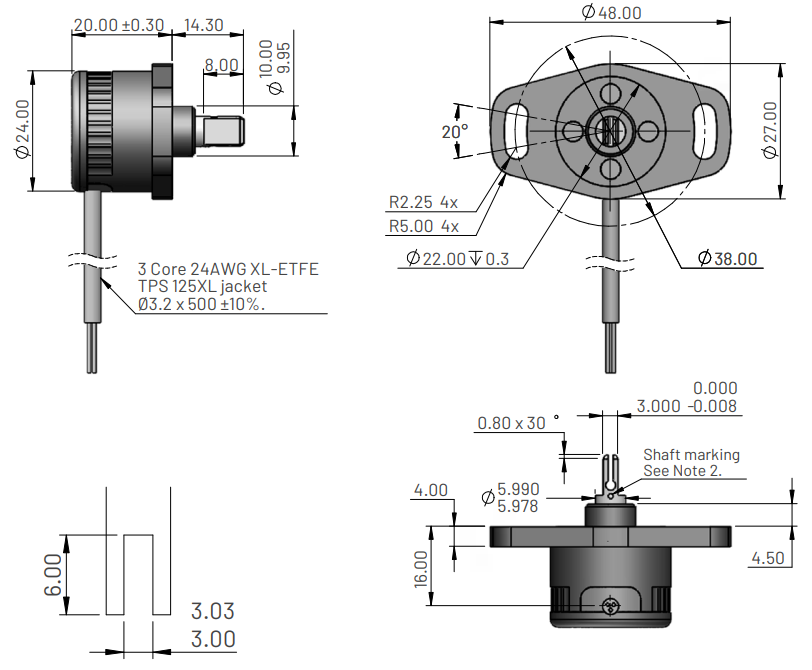

■ Dimensions for MHR5120 – Flange mounting – round shaft

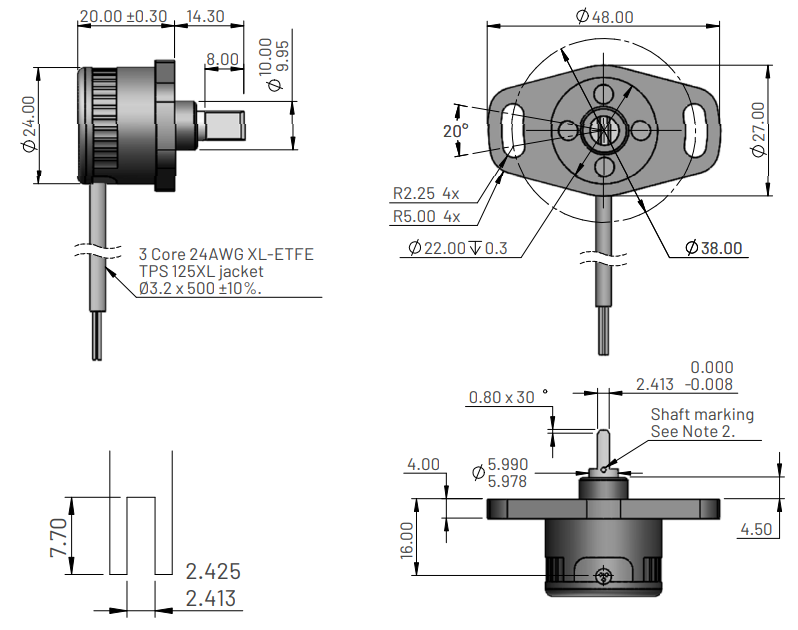

■ Dimensions for MHR5130 – Flange mounting – blade shaft
