Manufacturer: DEICY Co., Ltd.
Model: MHR5300 Series

Features

• Angle range: 20° to 360°, every 1°
• 3 types of stainless steel shafts
• Low-friction ball race bearings
• 5 VDC or 8 to 30 VDC powered
• Protection class IP68/IP69K

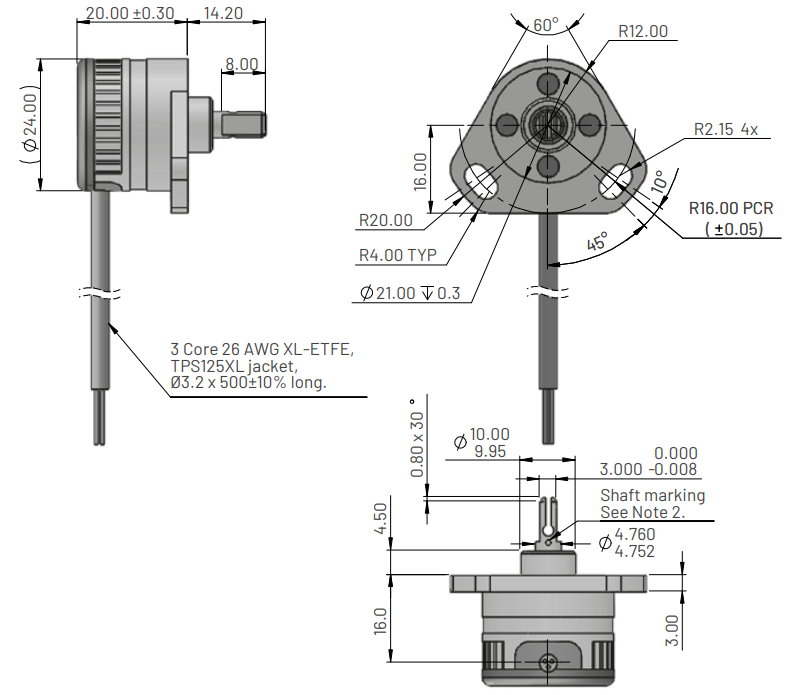

■ Dimensions for MHR5310 – Triangular Flange mounting with a sprung shaft

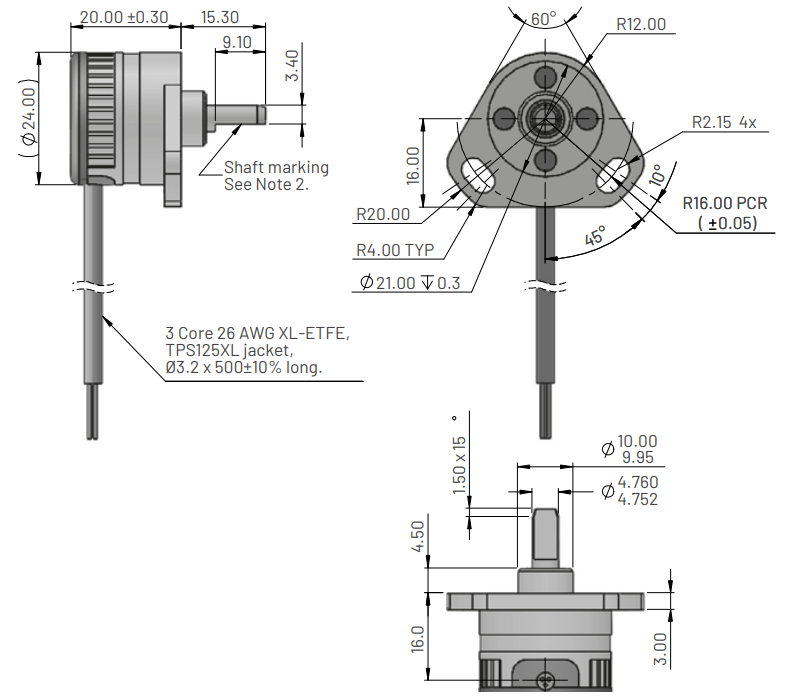

■ Dimensions for MHR5320 – Triangular Flange mounting with a round shaft

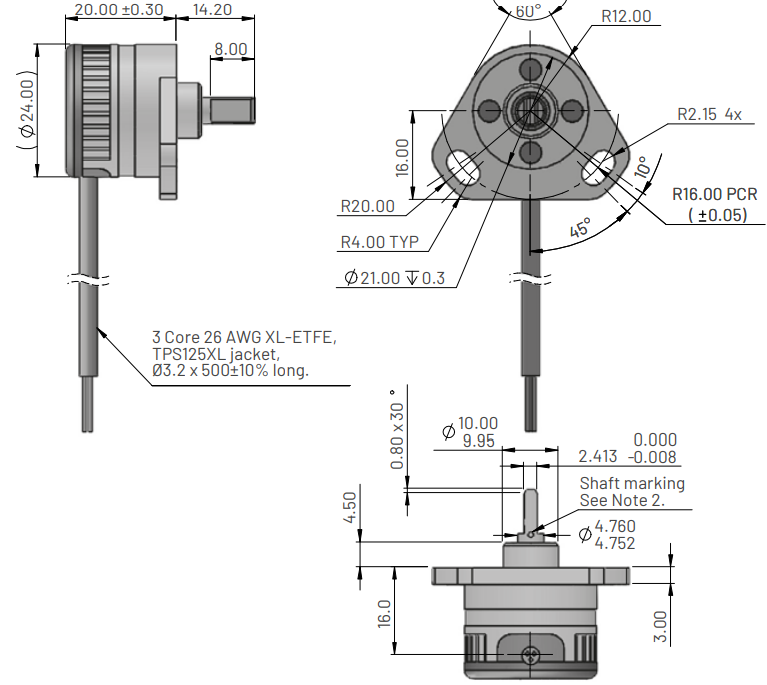

■ Dimensions for MHR5330 – Triangular Flange mounting with a blade shaft
