Manufacturer: DEICY Co., Ltd.

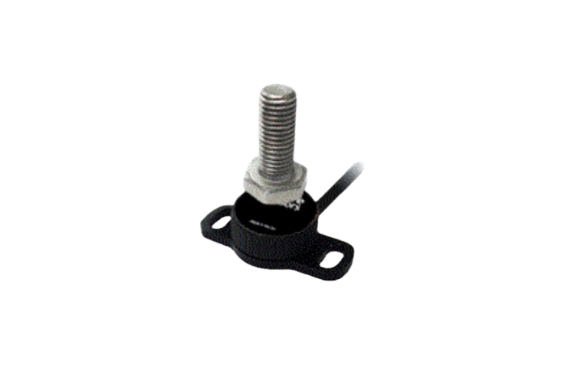

Model: MHR5700 Series

Features

• Dual electrically isolated outputs
• The magnet and sensing units are housed in separate housings
• Angle range: 20° to 360°, every 1°
• 3 types of stainless steel shafts
• High vibration applications
• 5 VDC or 8 to 30 VDC powered
• Protection class IP68/IP69K

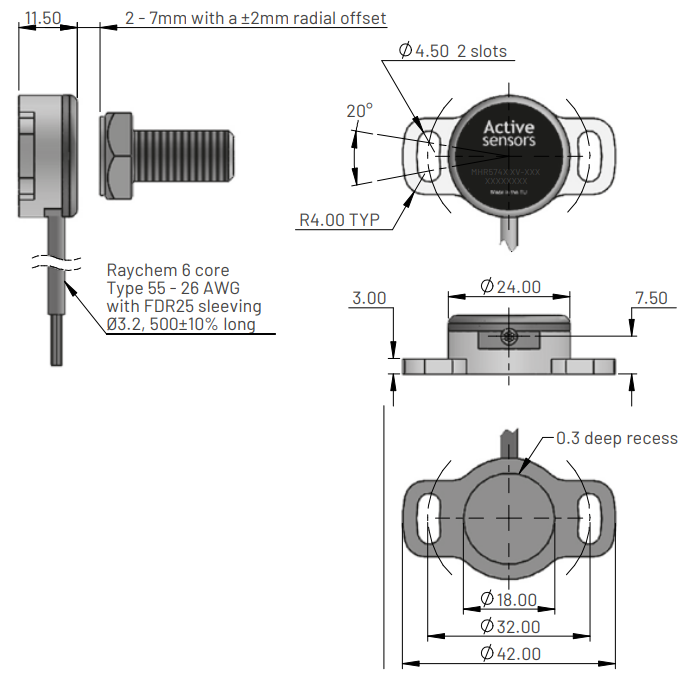

■ Dimensions for MHR5740 – Flange mounting with magnet options

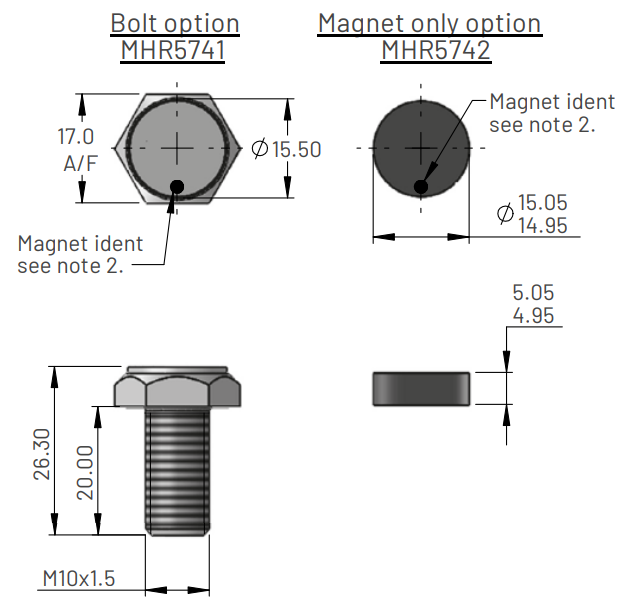

■ MHR574X XV-XXX Magnet holder option
