DEICY

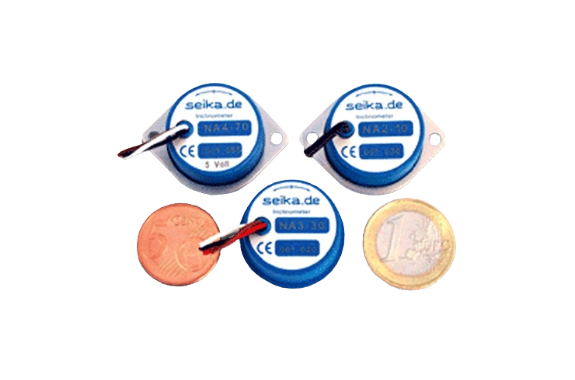

Deicy NA Series
Manufacturer: DEICY Co., Ltd.
Model: NA Series
Features
- The linear range can go up to ±80°.
- Zero drift and cross-sensitivity interference are extremely low.
- Excellent long-term stability.
- No hysteresis, providing high-precision linearity.
Specifications
| Power Supply | +9V to +30V DC |
|---|---|
| Current (+8V to +30V) | Approximately 2mA |
| External Stabilized Power Supply (Option) | +5V |
| Current (+5V) (Option) | Approximately 1mA |
| Protection Grade | IP65 |
| Offset Voltage | 2.5V |
| Cross Sensitivity (45° Tilt) | <1% |
| Noise Voltage | <150μV Vss |
| Reference Output Voltage (Option) | 5.00V |
| Reference Output Voltage Temperature Drift | <25ppm/°C |
| Reference Output Maximum Current | 5mA |
| Weight (Without Fixed Ring, Cable) | 18.5g |
| Output Resistance | Approximately 100Ω |
| Response Time (Within ±2% of Actual Value) | <0.3sec |
| Electrical Signal Noise | >85 dB |
| Connection Cable | 2.1mmφ × 0.5m Shielded Cable |
