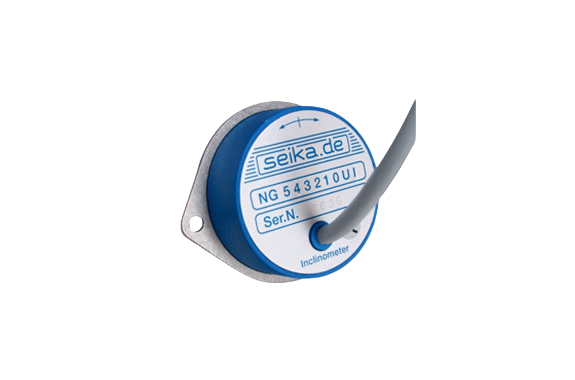

Deicy NG Series
Manufacturer: DEICY Co., Ltd.
Model: NG Series
Features
- This inclination angle sensor is available in three models with measurement angle ranges of ±10°/30°/80°
Specifications
| Model | NG2 | NG3 | NG4 |
|---|---|---|---|
| Measuring Range | ±10° | ±30° | ±80° |
| Resolution | <0.001° | <0.003° | <0.01° |
| Non-linearity | 0.02° | 0.06° | 0.16° |
| Horizontal Sensitivity | <0.5% (45° slope) | <0.5% (45° slope) | <0.5% (45° slope) |
| Frequency Range | 0～160Hz | 0～350Hz | 0～550Hz |
| Response Time | Approx 0.3 sec. | Approx 0.3 sec. | Approx 0.3 sec. |
| Supply Voltage | 5V DC | 5V DC | 5V DC |
| Supply Voltage Range | 3～6V DC | 3～6V DC | 3～6V DC |
| Current Consumption | Approx 1mA | Approx 1mA | Approx 1mA |
| Protection Rating | IP65 | IP65 | IP65 |
| Operating Temperature Range | −40°C to +85°C | −40°C to +85°C | −40°C to +85°C |
| Ambient Temperature Range | −45°C to +90°C | −45°C to +90°C | −45°C to +90°C |
| Shock Resistance | 5G, 5～500Hz | 5G, 5～500Hz | 5G, 5～500Hz |
| Vibration Resistance | 10,000G | 10,000G | 10,000G |
| Weight (Without cable) | Approx 110g | Approx 110g | Approx 110g |
| Housing Material | Strong Glass Fiber Reinforced Housing | Strong Glass Fiber Reinforced Housing | Strong Glass Fiber Reinforced Housing |
| Connecting Cable | 0.5m × External diameter 2.1mm Shielded Cable | 0.5m × External diameter 2.1mm Shielded Cable | 0.5m × External diameter 2.1mm Shielded Cable |
