Manufacturer: Denki Keiki Co., Ltd.

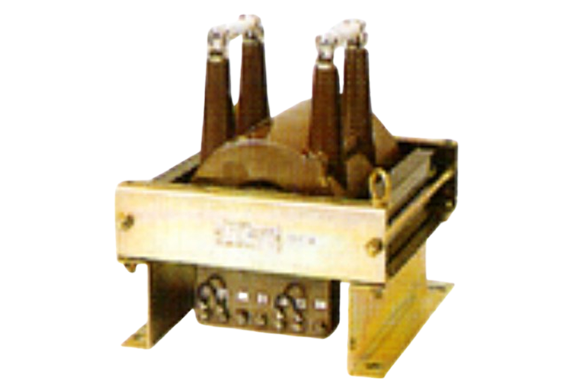

Model: High-voltage Molded Transformer

Features

• A power transformer is used to operate the main switch, on/off indicators, and on/off controls of high-voltage power distribution panels.
• The key feature of this product lies in its design, which reduces voltage fluctuations at each load power factor.
• This design enhances the instantaneous capacity when the circuit breaker is closed.
• Higher switching capacities can be selected due to the increased instantaneous capacity provided by this product.

Specifications

◆Characteristics of the transformer for operation use

• This device is a transformer used for high-voltage side and low-voltage side operation, which is necessary for equipment such as the main circuit breaker and operation panel.
• The transformer is designed to operate at high voltage with a high training tolerance, requiring high reliability and performance in operation.
• Special attention is paid to the performance and durability of the equipment. It is designed to function efficiently and be used for various applications with high load capacities.
• In addition, the product can be customized to meet individual needs, and it has been tested with high reliability under several conditions to ensure that it performs effectively.

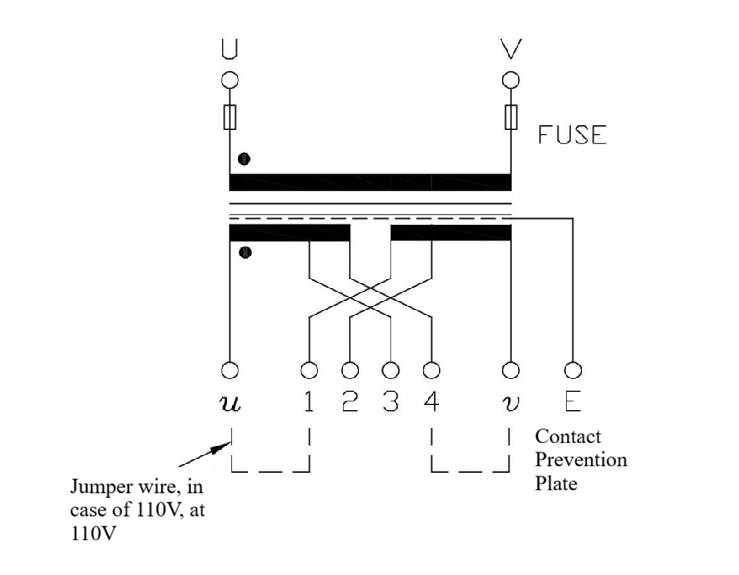

◆Wiring Diagram

◆Double Series Switching Method

◆Single-phase Three-wire Method

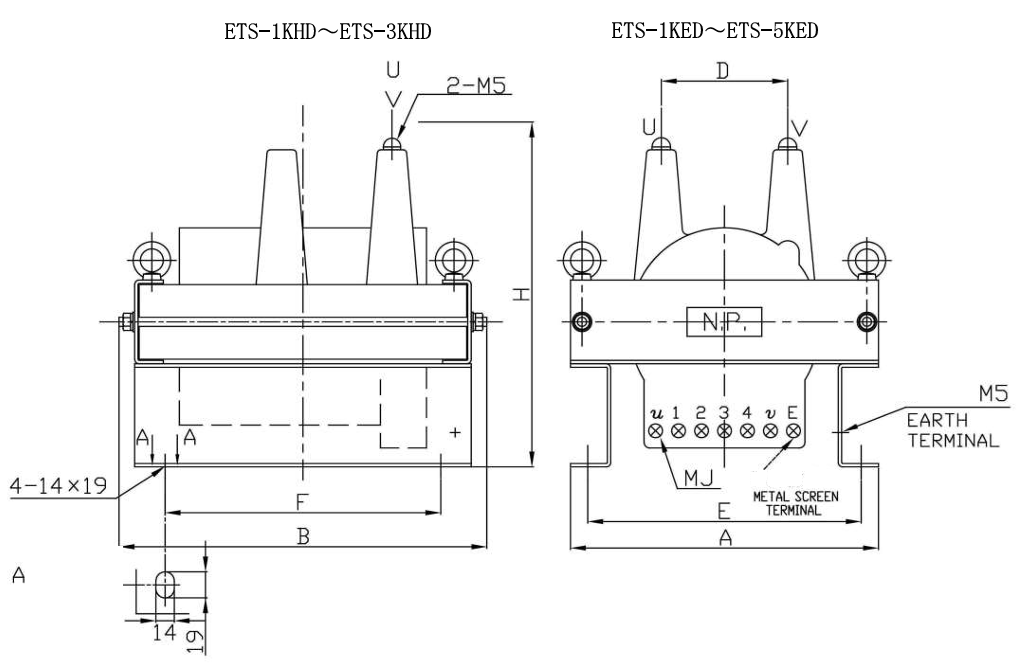

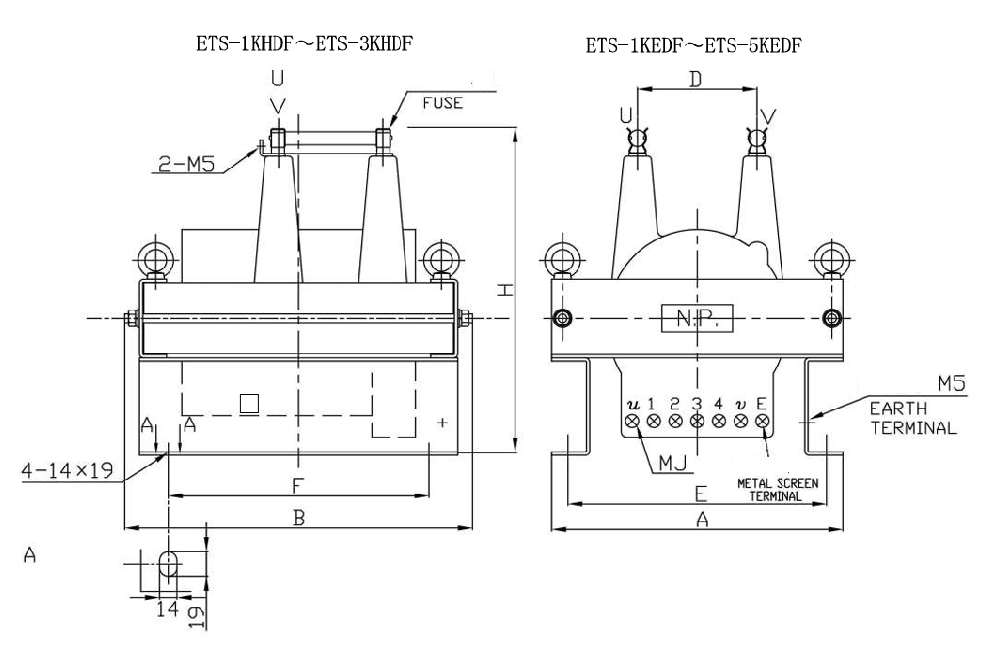

◆Single-phase, High-voltage Operation Molded Transformer
