Diatex Co.

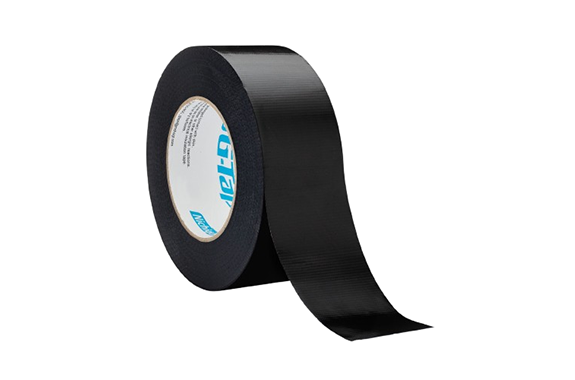

Diatex 5007BK UV Protection Flame Retardant Sheet
Manufacturer: Diatex Co., Ltd.
Model: 5007BK
Features
- Easy to tear by hands straight: No cutting tool is required
- Extra high UV shielding: Protect assemblies from the sun
- Flame retardancy: Passed FAR25.853(a) vertical burning test
Specifications
| Content | Unit | Value | Test method |
|---|---|---|---|
| Weight | oz/yd2 (g/m2) | 4.4 (150) | MCC method |
| UV transmittance (200-400nm) | % | ≤ 1 | MCC method |
| Breaking strength | lbf/in (N/cm) | 28.5 (50) | PSTC 131 |
| Elongation | % | 12 | PSTC 131 |
Dimensions (mm)
