DMW Corporation

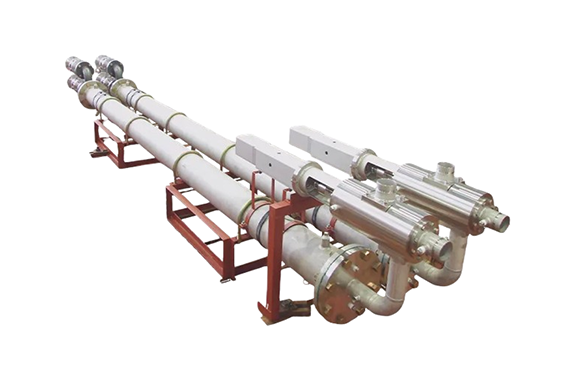

DMW DeROs-E Energy Recovery Devices Equipment For Water Treatment Plants
Manufacturer: DMW Corporation
Model: DeROs-E
Features
Energy recovery possible even at extremely low pressures (Evolution , E xtreme)
- DeROs® , a desalination plant that boasts the world’s highest level of energy recovery efficiency and uses a positive displacement reciprocating type, is capable of recovering energy down to extremely low pressures, and the DeROs-E® also uses the same type.
This makes it possible to recover energy from concentrated water at a low pressure of 0.2 MPa.
Energy recovery efficiency: 98% or more (Extreme, Economical)
- We have generously applied the technical know-how we have cultivated through our pumps and valves to DeROs-E® .
It minimizes internal loss and boasts high energy recovery efficiency.
In addition, there is zero leakage or lubrication within the equipment, just like with DeROs® , and no unnecessary power is required to operate the High-Pressure Pump.
Low noise and low vibration (Environmental Friendly)
- The flow inside the cylinder is precisely controlled by the Switching Valve installed in each cylinder.
The control logic has been fine-tuned for DeROs-E® .
By operating the moving parts at a low speed, the noise level 1m from the machine is 75dB(A) or less.
The meaning behind the ” E ” in ” DeROs-E® “.
- The ” E ” in DeROs-E® stands for Evolution, Extreme, Economical, and Environment Friendly.
Specifications
Concentrated water pressure：~4.0MPa
Concentrated water flow rate：5～20m3/h
liquid quality: Industrial water, wastewater, low-concentration saline water, etc.
Main material: SUS304 (SUS316 is optional)
