Manufacturer: Eagle Industry Co., Ltd.

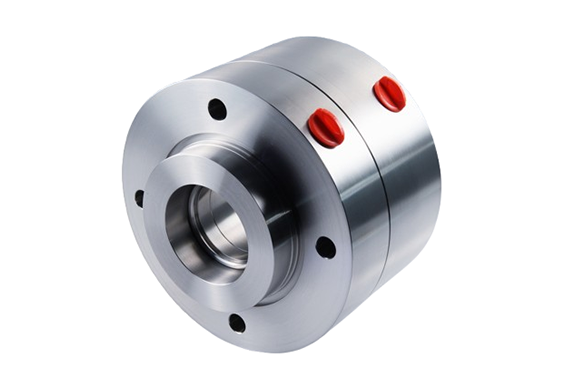

Model: LL9DSUU

Features

• API 682 Category 2 and 3, Type A, Arrangement 3 seal Dual seal in face-to-face arrangement Same size of inboard and outboard seal Balanced Cartridge unit Stationary multiple springs Solid seal faces

Specification

Standards and approvals

• API 682 / ISO 21049

Materials

• Seal ring: Blister resistant carbon, Silicon carbide SSiC (Q1), RBSiC (Q2)
• Mating ring: Silicon carbide SSiC (Q1), RBSiC (Q2)
• Secondary seals: FKM (V), FFKM (K), EPDM (E), NBR (P)
• Springs: Hastelloy® C-276 (M5)
• Metal parts: CrNiMo steel 316 (G)

Operating range

• Pressure: p = 60 bar (870 PSI)
• Temperature: -40 °C … +176 °C (-40 °F … +349 °F)*
• Sliding velocity: vg = 50m/s (164 ft/s)
• Viscosity: … 300 mPas
• Solids content: … 0.5 wt.%
• * Engineered up to 260 °C (500 °F) with FFKM (K) secondary seals

Recommended applications

• Refining technology
• Oil and gas industry
• Petrochemical industry
• Chemical industry
• Power plant technology
• Light volatile hydrocarbons
• LPG plants API 610 / ISO 13709 pumps
• Process pumps

Recommended piping plans

• Process side: 02, 11, 12, 13, 14, 21, 22, 31, 32, 41
• Between seals: 53A, 53B, 53C, 54
• Atmospheric side*: 61, 62, 65A, 65B
• * Throttle bushing on request
