Manufacturer: Eagle Industry Co., Ltd.
Model: Y8K

Features

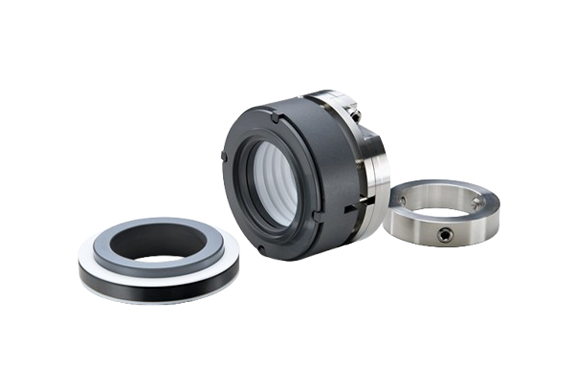

• PTFE bellows type seal for low pressures (used as an outside seal)
• * The Y8K is an outside seal and does not meet ISO standards.
• 　A quenching device is required for the flange.

Specification

Operating range

• Pressure: 4.5 bar (65 PSI)
  Temperature: −10 ºC to 120 ºC (14 ⁰F to 248 ⁰F)
  Sliding velocity: 15 m/s (49 ft/s)
  Viscosity: 0.1 Pa・s
  Solids content: 0.1wt% max.

Seal liquids

• Highly corrosive fluids
