Eagle Industry Co.

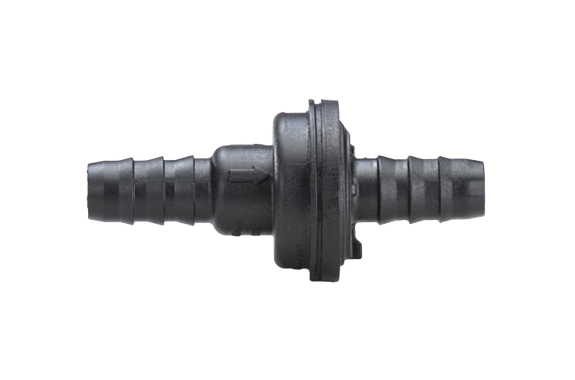

Eagle Industry Check Valve
Manufacturer: Eagle Industry Co., Ltd.
Features
Special valve requirements:
- low pressure losses while air flow through the valve
- no adhesion of the diaphragm due to sticking effects
- low leakage rate while dp working in closing direction
Specification
| Material | PA6.6 |
|---|---|
| Temperature range | -40°C to 140°C |
| Internal resistance against | Blow By, E22, E85, M15, M26, fuel ROZ95, fuel ROZ98, RSG E10 |
| External leakage | < 0,67ml/min |
| Opening pressure | dp< 5hPa |
Note: The above figures show some examples. Contact us when you are considering making a purchase.
