Eagle Industry Co.

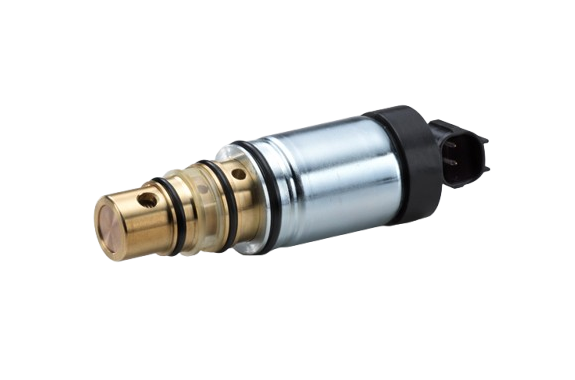

Eagle Industry Control Valve For Variable Displacement A/C Compressor
Manufacturer: Eagle Industry Co., Ltd.
Features
- Control valves with a bellows in the pressure-sensing section provide high responsiveness to very small pressure changes.
- The patented Direct Pressure Sensing (DPS) structure (PAT. 4246975) achieves absolute pressure balance by canceling internal pressure.
Specification
| Voltage | Rated voltage 12.0 V (13.5 V max.) |
|---|---|
| Temperature | 120ºC for continuous exposure (150ºC max. and -40ºC min.) |
| Pressure | 2.0 MPaG max. (characteristics guaranteed at this pressure; breakdown pressure: 9.0 MPaG) |
| Resistance | 10.6 ± 0.5 Ω |
Note: The above figures show some examples. Contact us when you are considering making a purchase.
