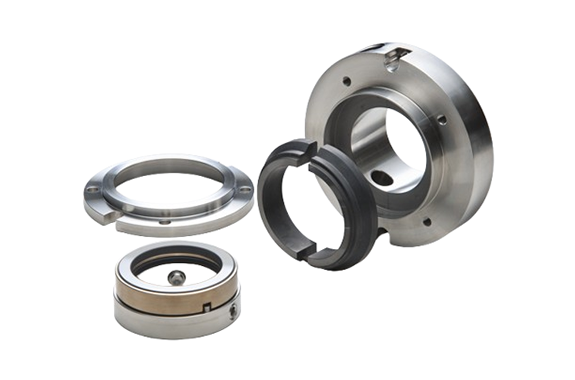

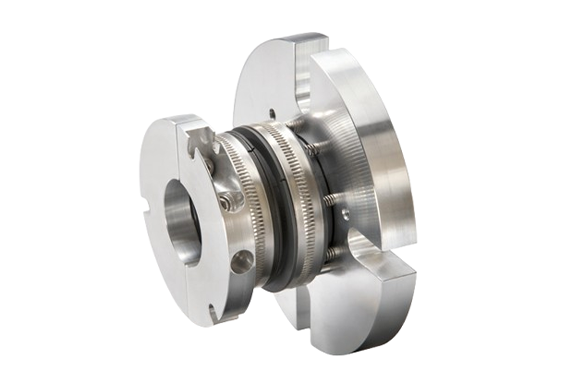

Manufacturer: Eagle Industry Co., Ltd.
Model: C Series

Features

High performance

• A stationary type with good followability
• Designed to minimize any sludge clogging in respective parts
• Structure that prevents the spring and pin from contacting the sludge
• Outside type ensures superb heat radiation

Long life

• Uses silicon carbide that is highly resistant to sludge
• Avoids decrease in performance due to sludge
• Designed to minimize the damage and wear on the sliding surface
• Capable of ensuring air-cooling by the atmosphere-side rotating element

Superb installability

• Pre-assembled cartridge seal ensures installation with an accurate setting length
• An ultra-thin seal installable in small spaces

Minimal maintenance

• Extends the replacement intervals, and reduces the number of operations required
• Significantly reduces the time and labor required for assembly/disassembly

Cost-saving, no equipment cost required

• No flow relays, piping, or valves required

Specification

Materials

• Seal face: Silicon carbide
  Seat: Silicon carbide
  Metal parts: CrNiMo steel 316 (G)
  Secondary seals: FKM (V)

Operating range

• Pressure: 5 bar (73 PSI)
  Sliding velocity: 15 m/s (49 ft/s)
  Temperature: 0 ºC to 80 ºC (32 ⁰F to 176 ⁰F)
  Viscosity: 1 Pa・s
  Solids content: 10 wt%

Main applications

• Purification center: sewage pumps, sludge pumps
• Ironworks: coolant pumps, water circulation pumps
• Power plants: water supply pumps, drainage pumps, coolant pumps, etc.
