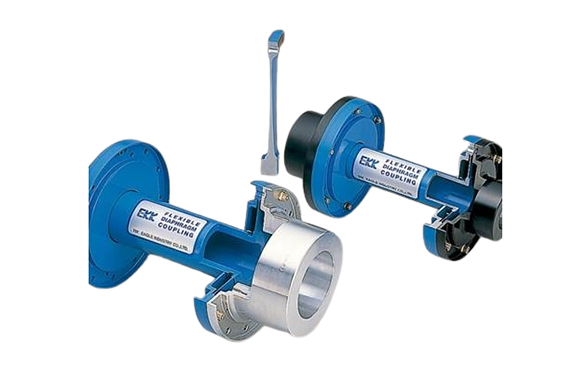

Manufacturer: Eagle Industry Co., Ltd.

Features

• Special diaphragm shape enables to transmit a large torque, low load on the bearing
• Simple structure ensures easy installation/removal, lightweight
• Optimum for high speeds (100,000 rpm max.)
• Having no movable/frictional parts, this coupling does not require lubrication nor have noise, vibration, backlash, change in dynamic balance.

Specification

Model 66

• Special low alloy steel used for the diaphragm
• Main applications: general-purpose pumps, precision machine tools, general-purpose machines, main engines/auxiliary equipment for vessels, power generator

Model 67/74   Model 99/100           Complies with API 671, high-speed/high-torque specifications

• Model 67/99: Complies with low-speed specifications of the API 671 standard
• Model 74/100: Complies with mid-/high-speed specifications of the API 671 standards
• Model 67/74: special low alloy steel used for the diaphragm
• Model 99/100: special pre cipitation-hardening stainless steel used for the diaphragm
• Main applications: gas/steam turbine driving systems, compressors, large combined power generation system
