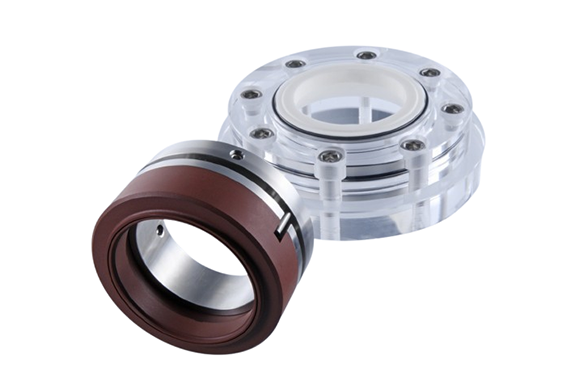

Manufacturer: Eagle Industry Co., Ltd.
Model: AD510/AD520

Features

• Dry running
• Single seal
• Independent of direction of rotation

Specification

Materials

• Seal face: PTFE, Carbon fiber and glass
  fiber reinforced
  Seat: Silicon carbide (Q1), Aluminium oxide (V)
• Secondary seals: FFKM(K)

Operating range

• Vessel pressure: p = vacuum (7 mbara) … 5 bar (73 PSI)
  Vessel temperature: t = -30 °C … +175 °C (-22 °F … +347 °F)
  Sliding velocity: vg = max. 1.0 m/s (3 ft/s)
  Allowable gas consumption: 2 Nl/h

Recommended applications

• Chemical industry
  Pharmaceutical industry
  Food and beverage industry
  Reactors
  Polymerization agitators
  Mixers

Notes

• Options:
  Cooling jacket on the vessel side flange and
  carbon bush and
  version with gas flushing line and lip seal.
  Please inquire.
