Manufacturer: Eagle Industry Co., Ltd.

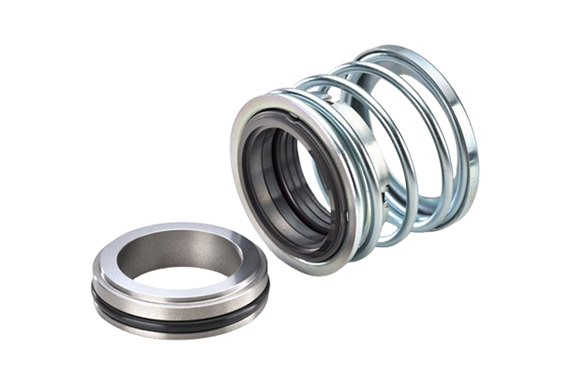

Model: EA111

Features

• The face materials of this mechanical seal for refrigerators consist of special cast iron and carbon components, specifically designed for CFCs and refrigerator oil.
• Two face materials, positioned perpendicular to the axis, seal the fluid.
• Highly smooth, flat sliding surfaces ensure stable sealing performance even under substantial wear.
• As a result, the mechanical seal operates without the need for maintenance over extended periods, offering exceptional effectiveness, efficiency, reliability, and economy.
• In the packing-driven system that drives the rotating ring, the seal is securely clamped to the shaft by the tightening force of the packing.
• The seal functions independently of rotation direction, eliminating the need for an anti-rotation mechanism.
• This simplifies shaft machining and reduces costs.
• Additionally, bellows integrated into the packing effectively compensate for eccentricity and misalignment, while also ensuring fluid sealing.

Specification

Note: The above figures indicate the best conditions in individual cases and may differ according to the seal size. Contact us before use.
