Eagle Industry Co.

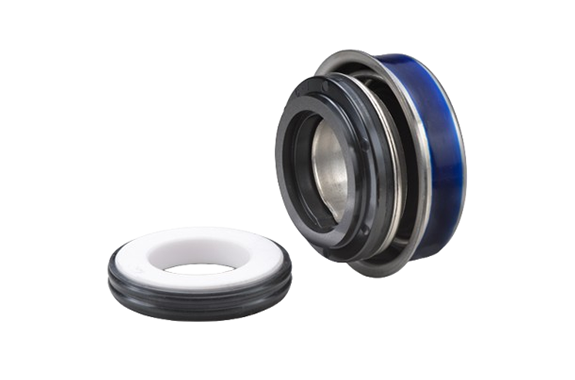

Eagle Industry EH795/EH790 For Water Pump
Manufacturer: Eagle Industry Co., Ltd.
Model: EH795/EH790
Features
- These seals are designed for high-speed rotation, featuring a simple and compact construction.
- The seal face materials consist of Eagle Industry’s proprietary carbon components and SiC, offering high resistance to heat, wear, and corrosion.
- Manufactured using fully automated assembly lines at global production sites, these seals hold a significant market share worldwide, particularly in the category of seals for automotive water pumps.
- They are also suitable for use in industrial pumps.

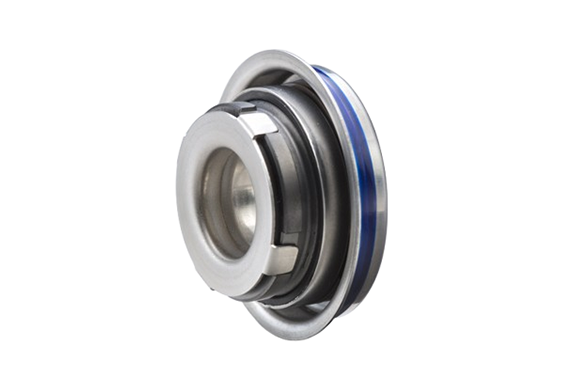

- EH795: The rotating and stationary components are unitized with the stamped sleeve, ensuring ease of installation and high reliability by protecting sliding surfaces.
Specification
| Sealed fluid | Water, Coolant, etc. |
|---|---|
| Temperature | -20ºC to 110ºC (120ºC max.) |
| Maximum circumferential velocity | 12 m/s |
| Pressure | -67 kPa to 0.3 MPaG |
| Shaft diameter | Up to 30 mm |
Note: Above shows typical conditions, please contact us with your specific requirements.
