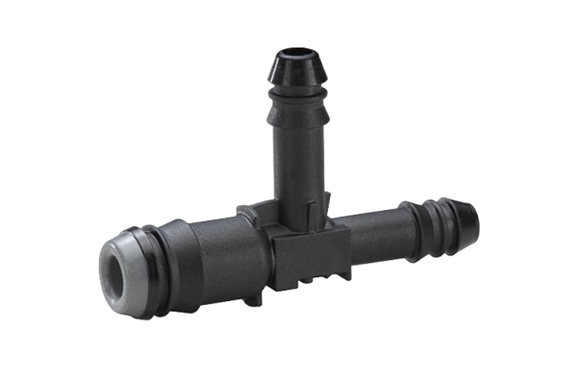

Eagle Industry Ejector
Manufacturer: Eagle Industry Co., Ltd.
Features
- Air flow from inlet to outlet causes a difference pressure within the purge port, which is connected to the purge system via the purge valve.
- Petrol vapour will then be conveyed from carbon canister to the engine even under charged conditions.
- Purge function is possible not only under vacuum but additionally under pressure generated by the turbo charger.
Specification
| Material | PA6.6 |
|---|---|
| Temperature | -40°C to 140°C |
| Internal resistance against | Blow By, E22, E85, M15, M26, fuel ROZ95, fuel ROZ98, RSG E10 |
| Flow rate within purge port | under dp on inlet port ≥ 15 l/min @ dp = 20 hPa ≥ 68 l/min @ dp = 344 hPa |
| Mounting | Sliding of rubber hoses or plastic pipes directly onto the valve nozzles. Connection of venturi ejector with hoses or pipes per quick connectors possible. |
Note: The above figures show some examples. Contact us when you are considering making a purchase.
