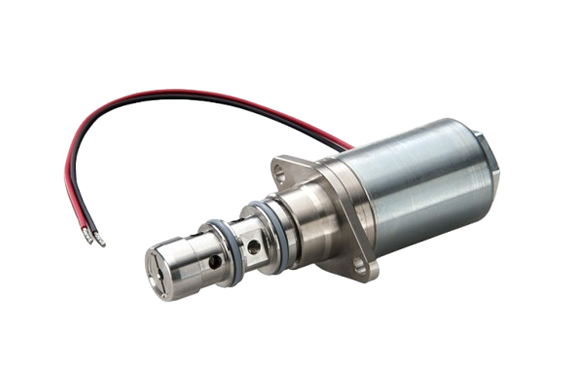

Eagle Industry Fuel Cell Solenoid Valve For Automotive Fuel Cell
Manufacturer: Eagle Industry Co., Ltd.
Features
- Without any sliding component, fuel cell valves incorporating a metal bellows offer low friction and low leakage.
- By equalizing the pressurized areas of the valve and bellows, the effects of upstream pressure fluctuations are cancelled.
- Solenoid thrust characteristics are optimally designed to reduce the effects of downstream gas usage (flow rate) fluctuations.
- Consequently, this fuel cell valve is highly stable and responsive due to a structure that enables the controlled downstream pressure and solenoid thrust to be in balance when controlled.
Specification
| Supply voltage | 12 V DC |
|---|---|
| Current control system | PWM |
| Consumption current | 0 to 1.8 A |
| Upstream pressure | 1.6 MPa max. |
Downstream pressure (controlled pressure) | 0 to 1.1MPa ※Fluctuations due to supply pressure |
| Maximum flow rate | 1500 NL/min (hydrogen gas) ※Supply pressure 1.6MPa,Control pressure 1.1MPa |
| Leakage rate | Less than 10 cc/h ※Supply pressure 1.6MPa |
Note: The above figures show some examples. Contact us when you are considering making a purchase.
