Eagle Industry Co.

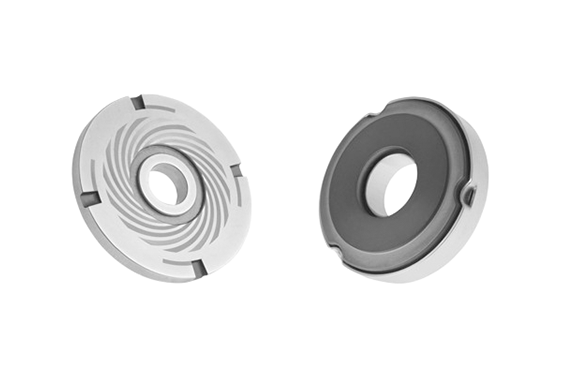

Eagle Industry GlideX-TCS
Manufacturer: Eagle Industry Co., Ltd.
Model: GlideX-TCS
Features
- The seal is designed for extremely high rotational speeds.
- A textured sliding surface ensures extremely low torque across the entire speed range while providing superior sealing performance.
- Non-contact sealing under rotation reduces sliding surface wear and enables high-speed capability.
- Custom seal designs are available to optimize performance based on application-specific requirements.
Specification
| Seal Type | Extremely high speed applications for automotive use |
|---|---|
| Sealed Fluid | Oil-based fluid |
| Maximum Rotational Speed | 300,000 rpm |
| Shaft Diameter | φ6 mm |
| Maximum Surface Speed | 217m/sec |
| Temperature Range | -15 ℃～150 ℃ |
| Pressure Range | -0.015 MPaG ～ 0.3 MPaG |
Note: Above shows typical conditions, please contact us with your specific requirements.
