Eagle Industry Co.

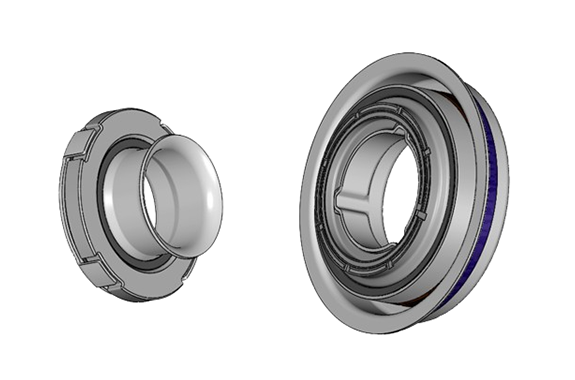

Eagle Industry GlideX-WPS
Manufacturer: Eagle Industry Co., Ltd.
Model: GlideX-WPS
Features
- Textured sealing technology combines extremely low torque with superior sealing performance.
- Non-contact sealing under rotation ensures low torque while enhancing wear resistance.
- Similar to the conventional seal design (EH795), the rotating and stationary components are unitized with a stamped sleeve, enabling easy installation and high reliability by protecting sliding surfaces.
Specification
| Sealed Fluid | Coolant |
|---|---|
| Maximum Rotational Speed | 12,000 rpm |
| Shaft Diameter | φ12 mm |
| Maximum Surface Speed | 12m/sec |
| Temperature Range | -20℃～120℃ |
| Pressure Range | -0.067 MPaG ～ 0.3 MPaG |
Note: Above shows typical conditions, please contact us with your specific requirements.
