Manufacturer: Eagle Industry Co., Ltd.

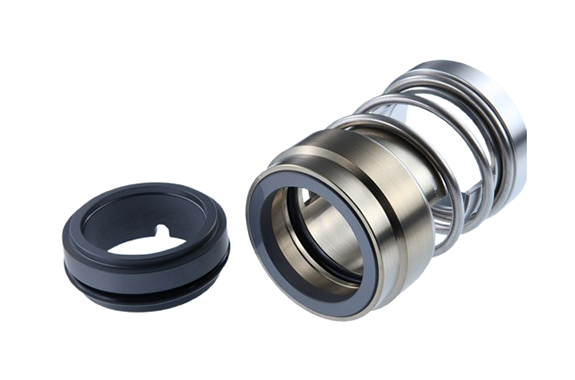

Model: H3B

Features

• Single Seal
• Balanced
• Independent of direction of rotation

Specification

Standards and approvals

• ISO 3096

Materials

• Seal face : Silicon carbide (Q1)
• Seat: Tungsten carbide (U7)
  Secondary seals: FKM (V)
  Metal parts: CrNiMo steel (G)

Operating range

• Pressure: p = 16 bar (232 PSI)
  Temperature: t = -20 °C … +160 °C (-4 °F … 320 °F)
  Sliding velocity: vg = 20 m/s (66 ft/s)
  Viscosity: … 300 Pa·s
  Solids content: … 7 wt.%

Recommended applications

• Process industry
  Oil and gas industry
  High viscous media (tar, heavy oils)
  Process pumps
