Eagle Industry Co.

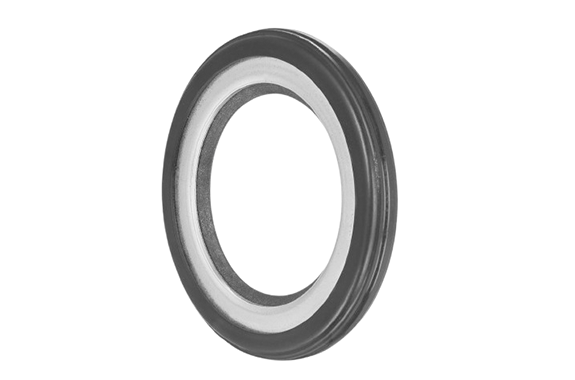

Eagle Industry Lip Seal for Electric A/C Compressor
Manufacturer: Eagle Industry Co., Ltd.
Features
- Shaft seals are designed for electric compressors, building on material technology and proven configurations specialized for automotive compressors.
- Rubber components and PTFE sealing lips are optimized for compatibility with refrigerant and oil.
- PTFE lips provide low friction through proprietary material, ideal thickness, and configuration, enhancing the efficiency of electric compressors while maintaining optimal sealing performance.
Specification
| Sealed fluid | R134a/R1234yf & Compressor oil |
|---|---|
| Operating Temperature | -40 till 150℃ |
| Fluid Pressure Range | Max. 0.7MPa (differential pressure) |
| Shaft Diameter | 20 – 25mm |
| Bore Diameter | 30 – 36.6mm |
Note: The above figures indicate the best conditions in individual cases and may differ according to the seal size. Contact us before use.
