Eagle Industry Metal Diaphragm Damper
Manufacturer: Eagle Industry Co., Ltd.
Features

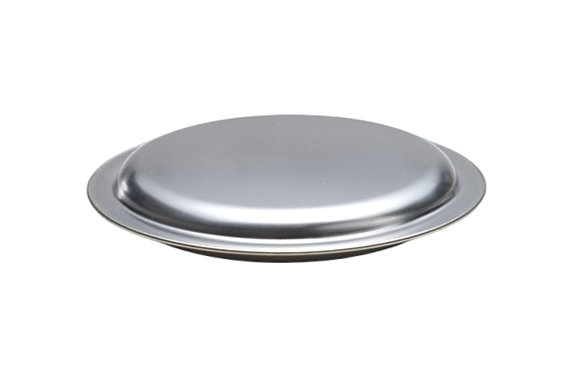

- The metal diaphragm damper, a capsule-shaped pulse dampener, absorbs fuel pulsations from the high-pressure fuel pump, reduces noise, and prevents instantaneous pressure drops.

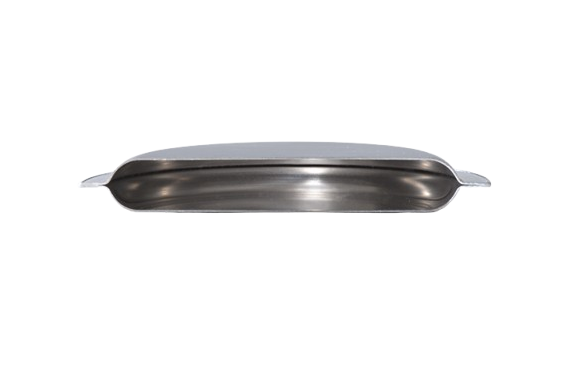

- Featuring a simple structure with two thin, springy metal diaphragms and a gas-filled interior, this damper is lightweight, space-saving, highly responsive, and durable.
- It is suitable for use with fuels containing sulfur or other substances incompatible with rubber dampers.
- Optimal geometry is provided to meet specific characteristic requirements through stress analyses based on pressure conditions.
Specification
| Filling Pressure | 0.6 MPa max. |
|---|
Dimensions(mm)
| outside diameter (OD) | OD: up to 40 |
|---|---|
| Height (H) | H: up to 5 |
| wall thickness (T) | T: up to 0.25 |
Note: The above figures show some examples. Please contact us for more specifications or details.
