Eagle Industry Co.

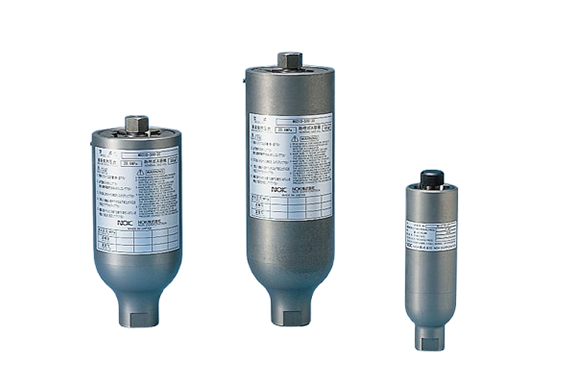

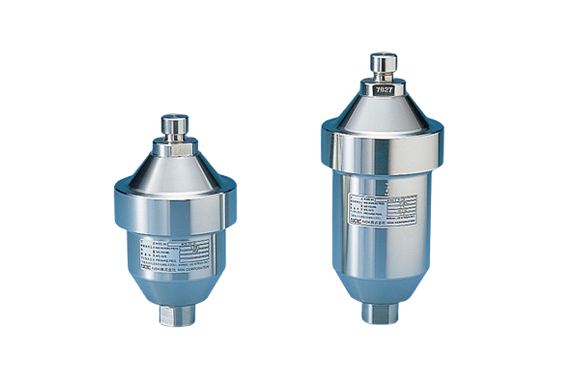

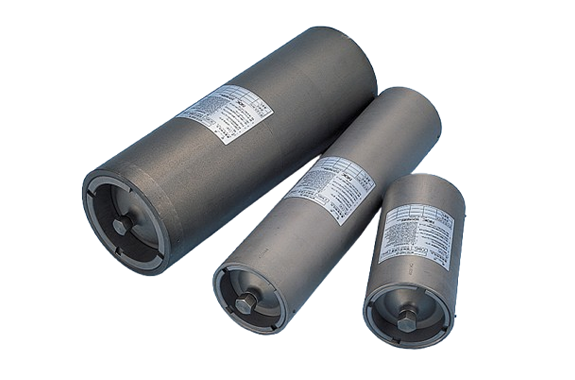

Eagle Industry Minilator
Manufacturer: Eagle Industry Co., Ltd
Features
- The shell is available in three materials: stainless steel, steel or aluminum.
Bladders made of rubber offer excellent tension fatigue resistance and very low gas permeability.
Optimal bladder and shell shapes make these accumulators long-life.
Specification
| Type | Max. Working Pressure (MPa) | Nominal Gas Capacity Volume (cm3) |
|---|---|---|
| MA (Stainless-steel) | 6.86 | 300 500 |
| MB （Forged steel） | 20.6 | 100 300 500 |
| MC (Cylindrical steel) | 6.86 20.6 | 1000 2000 3000 5000 1000 2000 3000 5000 |
| ME （Lightweight aluminum） | 6.86 | 30 100 300 500 |
