Manufacturer: Eagle Industry Co., Ltd.

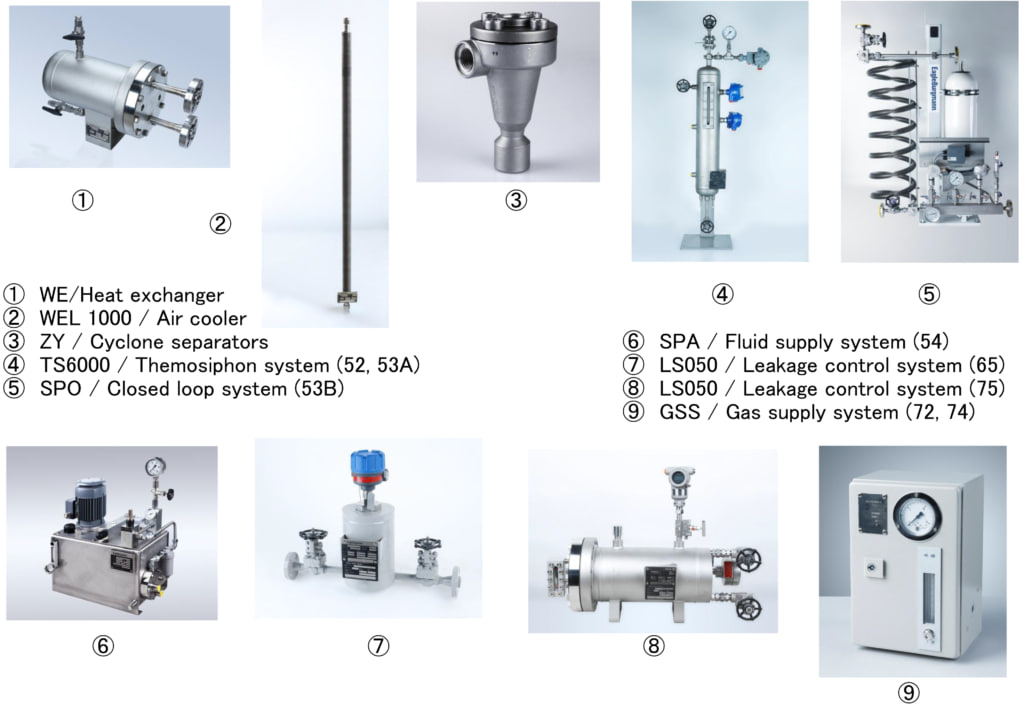

Features

① Heat exchanger (water-cooled):

Water-cooled heat exchanger installed in seal supply circuits to cool the seal fluid.

② Heat exchanger (air-cooled):

Air-cooled heat exchanger installed in seal supply circuits to cool the seal fluid. No cooling medium required.

③ Cyclone separator:

Equipment to continuously separate slurry in the seal fluid and keep the seal fluid clean. Also called a grading apparatus or classifier.

④ Thermosiphon system (Reservoir tank):

An enclosed or open tank containing external fluid (liquid) for use between dual seals. Used in combination with internal circulating device (a small impeller mounted to the mechanical seal for self-circulation of the external fluid).

⑤ Closed loop system (Accumulator type pressurizing system):

A system consisting of an accumulator, heat exchanger, and instrumentation. Gas enclosed/accumulated in the accumulator to pressurize external fluid (liquid). Used in combination with internal circulating device.

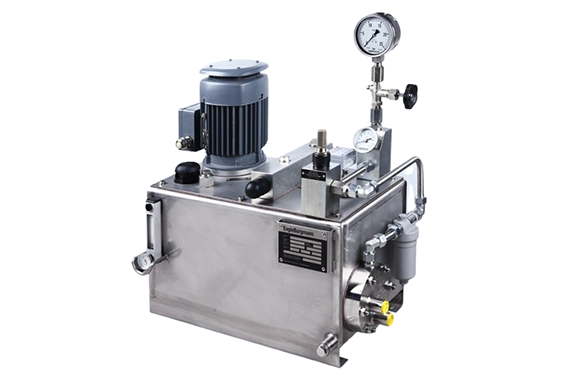

⑥ Buffer/barrier fluid system:

A system consisting of a pump, open tank, and pressure regulating valve, etc. Used to supply/circulate external fluid (liquid).

⑦⑧ Leakage control (collection/monitoring) system:

A system to collect liquid that leaks from the mechanical seal and detect an abnormal increase in the amount of leakage.

⑨ Gas supply system:

A system consisting of a flow meter, filter, and pressure regulating valve, etc. Used to supply external fluid (gas).
