Eagle Industry Co.

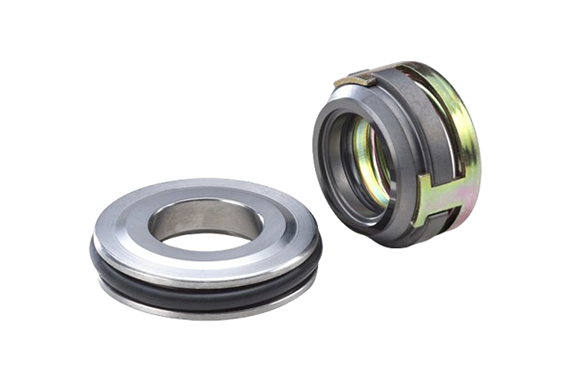

Eagle Industry Type A Mechanical Seal For A/C Compressor
Manufacturer: Eagle Industry Co., Ltd.
Model: Type A
Features
- This highly compact seal, originally designed by Eagle Industry, is specifically developed for car air-conditioning compressors.
- Special cast iron and carbon components, suitable for CFCs and refrigerator oil, offer exceptional wear resistance and sealing performance.
- The Type A mechanical seal is designed to maintain a vacuum during the gas filling process.
Specification
| Fluid | HFC134a + Refrigerator oil |
|---|---|
| Temperature | -20 to 100ºC |
| Maximum circumferential velocity | 8 m/s |
| Pressure | -0.1 to 0.4 MPaG |
| Shaft diameter | 12.7 to 18.0 mm |
Note: The above figures indicate the best conditions in individual cases and may differ according to the seal size. Consult Contact us before use.
