Manufacturer: Eagle Industry Co., Ltd.

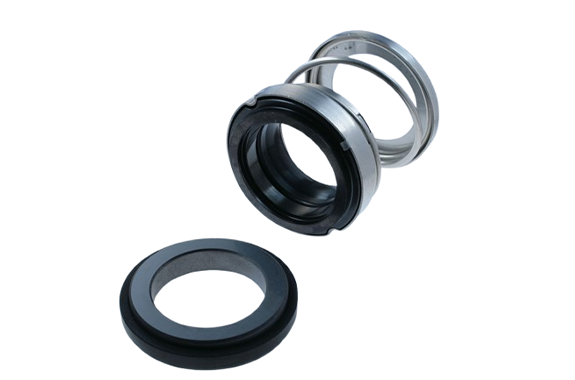

Model: EA560

Features

• Single seal
• Loosely inserted seal face provides selfadjusting capability
• In-house manufactured sliding parts

Specification

Materials

• Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
  Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
  Elastomer: NBR (P), FKM (V)
  Metal parts: CrNi steel (F)

Operating range

• Shaft diameter: d1 = 8 … 50 mm (0.375″ … 2″)
  Pressure: p1 = 7 bar (102 PSI), vacuum … 0.1 bar (1.45 PSI)
  Temperature: t = -20 °C … +80 °C (-4 °F … +176 °F)
  Sliding velocity: vg = 5 m/s (16 ft/s)
  Solids content:0.05tw.%

Recommended applications

• Water and waste water technology
  Chemical industry
  Process industry
  Water and waste water
  Glycols
  Oils
  Industrial pumps/equipment
  Submersible pumps
  Engine pumps
  Circulating pumps
