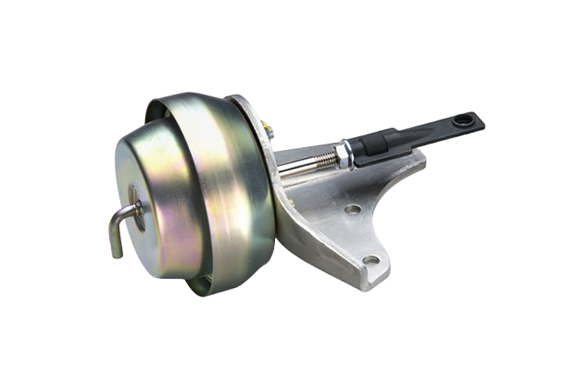

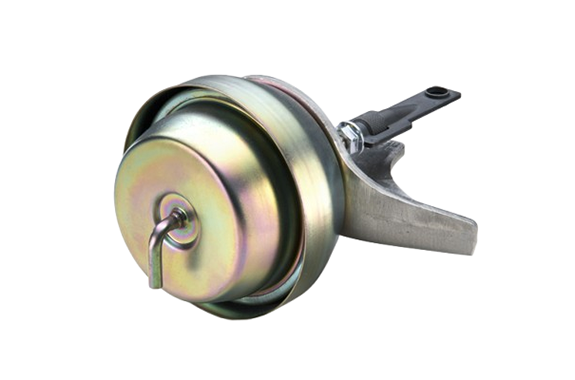

Eagle Industry VG Turbocharger Actuator
Manufacturer: Eagle Industry Co., Ltd.
Features
- A heat shield plate and bush made of a highly heat-resistant material are used to guarantee better high-temperature operation endurance.
Specification
| Pressure | -80 kPa min. |
|---|---|
| Temperature | -40 to 150ºC |
| Stroke | 15 mm max. |
| Vibration durability | 300 m/sˆ2 for 3×10ˆ7 cycles |
| Thermal shock durability | -40 to 150ºC for 20 cycles |
| High-temperature operation endurance | 150ºC for 10ˆ6 cycles |
Note: The above figures show some examples. Contact us when you are considering making a purchase.
