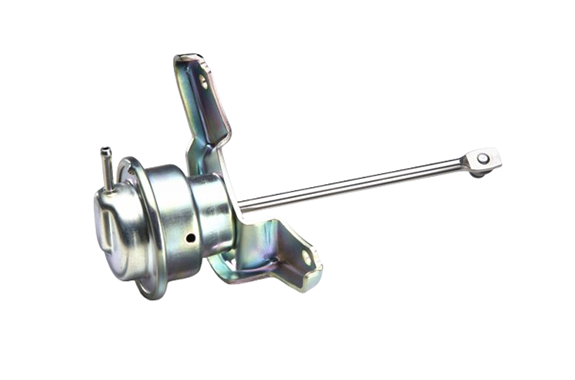

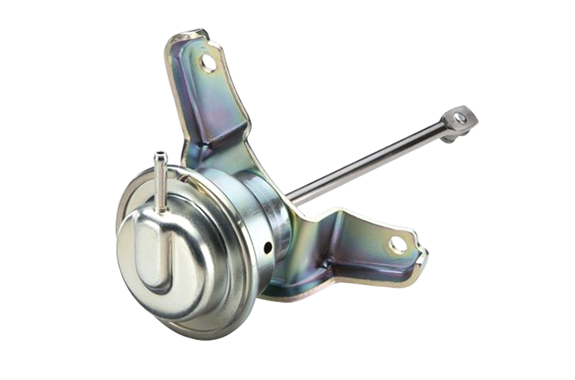

Eagle Industry Wastegate Actuator
Manufacturer: Eagle Industry Co., Ltd.
Features
- This Wastegate Actuator, with good hysteresis characteristics, handles vibrations from weak (100 m/s^2) to strong (300 m/s^2).
For strong vibration, our products feature highly durable material and surface treatment on their bearings and rod. - Different sets of diaphragm and spring materials are used depend on operating temperature.
- The link pin is made of a heat-treated special material of high quality to guarantee its wear resistance.
- This wastegate actuator is highly responsive at low temperatures (due to the use of a diaphragm with high responsiveness at low temperatures).
Specification
| Pressure | 139 kPa max. |
|---|---|
| Temperature | -40 to 150ºC |
| Working pressure | 50 to 120 kPa (at 2 mm stroke) |
| Stroke | 5 mm max. |
| Pressure resistance | 700 kPa |
| Vibration durability | 300 m/sˆ2 for 3×10ˆ7 cycles |
| Thermal shock durability | -40 to 150ºC for 20 cycles |
| High-temperature operation endurance | 150ºC for 10ˆ6 cycles |
Note: The above figures show some examples. Contact us when you are considering making a purchase.
