Eagle Jack, Japan

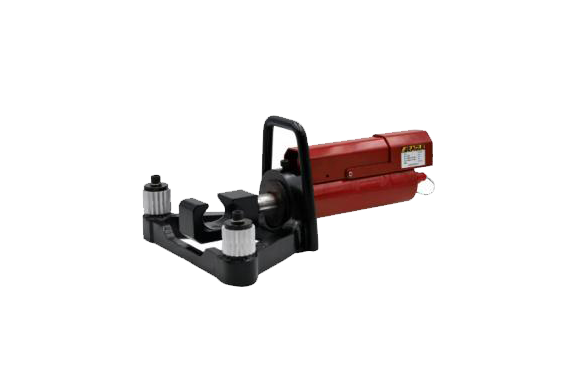

Eagle Jack HBS-38 Hydraulic Rebar Bender
Products Made in Japan
Manufacturer: Konno Corporation
Model: HBS-38
Features
Eagle’s unique field-oriented design! Bending and correction of column bars can be easily performed on site.
Adoption of unique geared coma! By using a geared frame, the unevenness of the rebar can be reliably gripped, and stable bending is possible.
Specification
| Dimensions | L625 × W350 × H230 mm |
| Bendable nominal diameter | Up to D38 |
| Material | SD390 |
Bendable angle | Push bending 90 |
| Pull bending 90 | |
Correction angle | Push correction 150° min. |
Pull correction 150° min. | |
| Required oil volume | 450 cm3 |
| Maximum working pressure | 70MPa |
| Compatible pump | KH-7030W |
| Coupler used | VC-70-R3 |
| Mass Approx. | 25.5 kg |
