Ecoals Co.

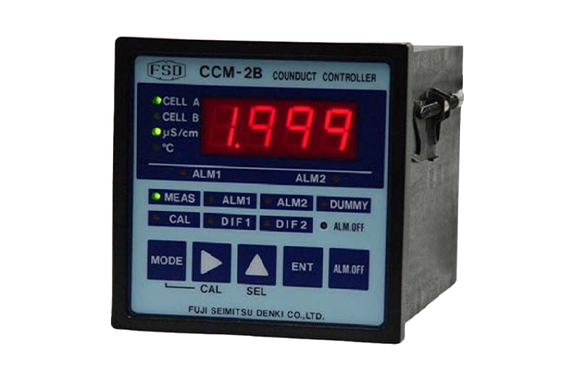

Ecoals CCM-2B
Manufacturer: Ecoals Co., Ltd.
Model: CCM-2B
Features
- Compact and lightweight
High reliability
Isolation output
One monitor two cell
Specification
| Name | Conductivity indicator regulator |
|---|---|
| Measurement method | AC 2 Electrode Method |
| Measuring range | 0~2,0~5,0~20,0 ~50, 0~200,0 ~500μ S/cm Combination of the above |
| Alarm output | ALM1, ALM2 upper or lower limit can be assigned |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Supply voltage | AC85～264V 50/60Hz |
| Dimensions | 96(W)× 96(H)× 155(D)mm |
| mass | Approx. 0.8kg |

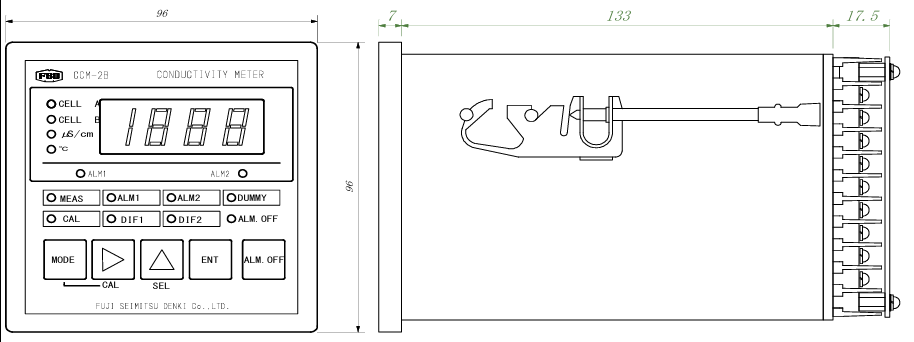

DIMENSIONS (mm)
