Ecoals Co.

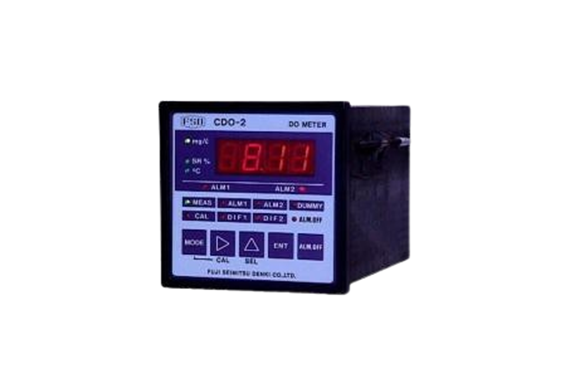

Ecoals CDO-2
Manufacturer: Ecoals Co., Ltd.
Model: CDO-2
Features
- Adopts DIN96 standard
- Uses diaphragm polarographic method
- Capable of issuing alarms for a specified amount or below
- Has an isolated DC 4-20mA output for transmission
Specification
| Model | CDO-2 |
|---|---|
| Measurement method | Diaphragm polarograph system. |
| indication | 3 1/2 LED Display |
| output | 4~20mA DC Isolated Output (Standard) Output range can be set arbitrarily |
| output | 4~20mA DC Isolated Output (Standard) Output range can be set arbitrarily |
| Alarm output | ALM1, ALM2 2 circuits 1ab each ALM3 and ALM4 can be added as an option |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Supply voltage | AC100V/AC200V ± 10% 50/60Hz |
| Dimensions | 96(W)× 96(H)× 155(D)mm |
| mass | Approx. 0.8kg |
