Ecoals Co.

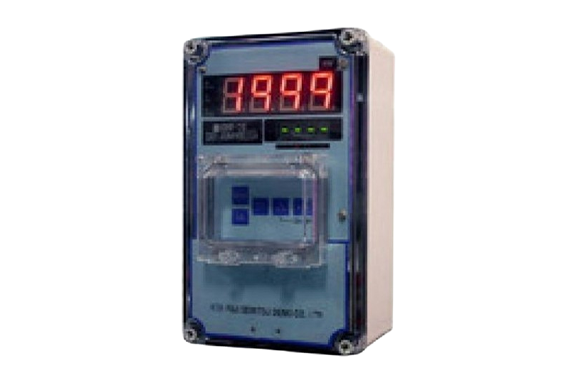

Ecoals COR-3B
Manufacturer: Ecoals Co., Ltd.
Model: COR-3B
Specification
| Model | COR-3B |
|---|---|
| Measuring range | ±1999mV |
| Measurement method | Metal electrode method |
| indication | MAIN display LED 4 digits SUB display LED 4 digits |
| output | Isolation DC4~20mA output range can be optionally set |
| Alarm output | ALM1, ALM2, ALM3, ALM4 4 Circuits |
| Alarm Contacts | AC250V 5A (Resistive Load) |
| Alarm Actions | Arbitrary allocation to the upper or lower limit is possible |
| Control Operation | ON/OFF control or proportional control configurable |
| Supply voltage | AC90～AC240V 50/60Hz |
| Dimensions | 140(W)×252(H)×125(D)mm |
| mass | Approx. 2.5kg |
| Mounting method | Wall mounting or pole mounting |
