Ecoals Co.

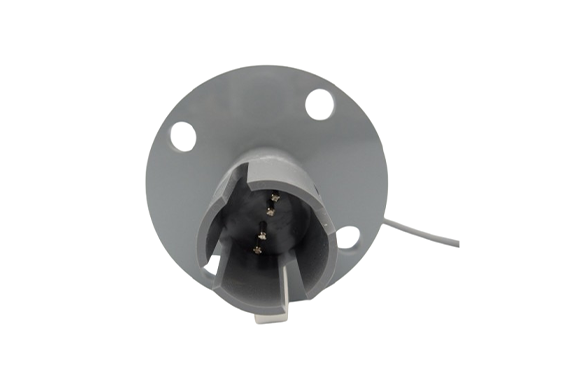

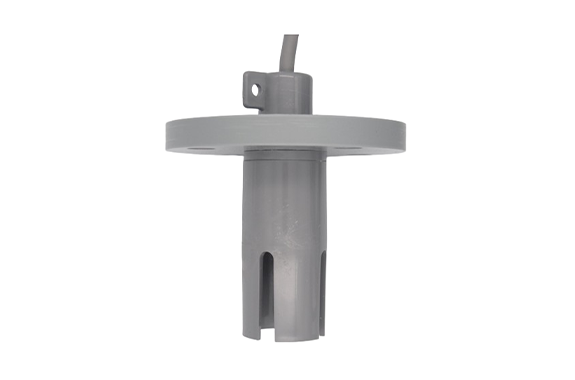

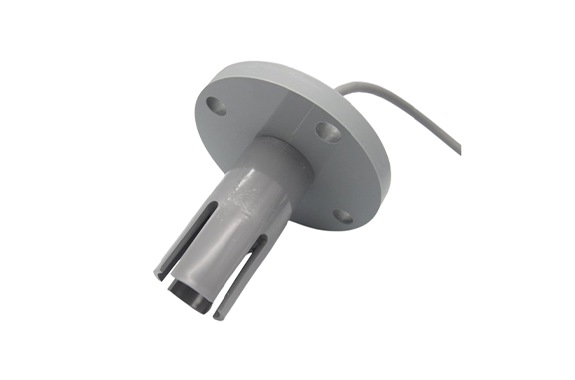

Ecoals CP-4F
Manufacturer: Ecoals Co., Ltd.
Model: CP-4F
Specification
| Operating Temperature | PVC 0-60°C PP 0-80°C |
|---|---|
| Temperature Detection Element | 2.2kΩ or 10kΩ at 25°C |
| Combined Instrument | Temperature Detection Element 2.2kΩ: CM-1, CM-1A, DCM-4B, DCM-5B Temperature Detection Element 10kΩ: CCM-4, CCM-5 |
| Material | Body: PVC or PP Connection Part: Titanium |
| Installation | Flange JISK50A |
| Lead Wire Length | 10m (Standard) |
| Cell Constant | 0.15 |
