Ecoals Co.

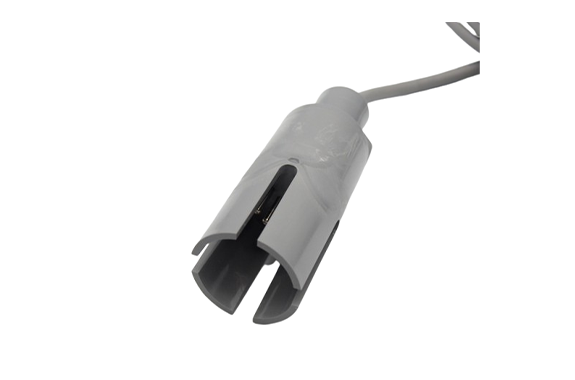

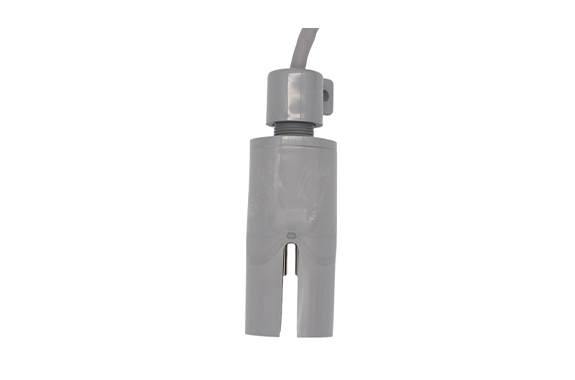

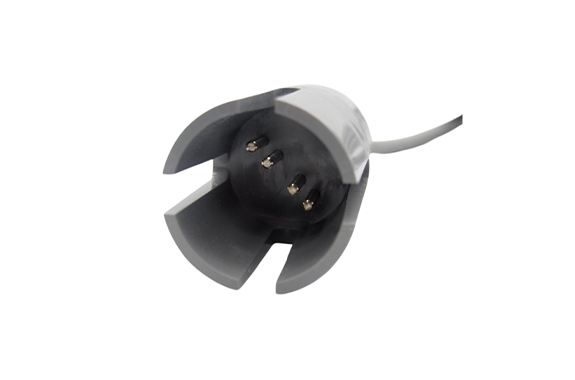

Ecoals CP-4N
Manufacturer: Ecoals Co., Ltd.
Model: CP-4N
Specification
| Operating Temperature | PVC 0-60°C PP 0-80°C |
|---|---|
| Temperature Sensor | 2.2kΩ or 10kΩ at 25°C |
| Compatible Instruments | Temperature Sensor 2.2kΩ: CM-1, CM-1A, DCM-4B, DCM-5B Temperature Sensor 10kΩ: CCM-4, CCM-5 |
| Material | Body: PVC or PP Connection Parts: Titanium |
| Installation | Immersion |
| Lead Wire Length | 5m, 10m (Standard) |
| Cell Constant | 0.15 |
