Ecoals Co.

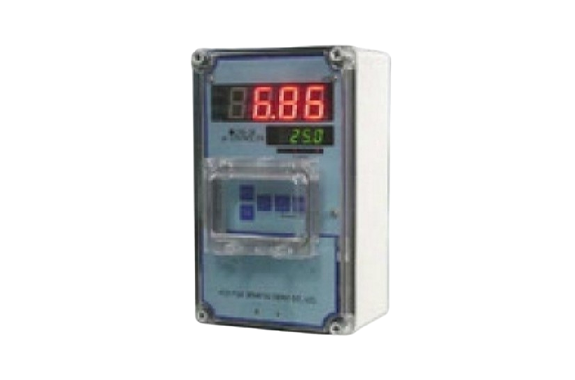

Ecoals CPH-3B
Manufacturer: Ecoals Co., Ltd.
Model: CPH-3B
Specification
| Model | CPH-3B |
|---|---|
| Measuring range | pH 0~14pH temperature 0~100°C |
| Measurement method | Glass electrode method |
| indication | MAIN display LED 4 digits SUB display LED 4 digits |
| output | DC4~20mA isolation output output range can be optionally set |
| Supply voltage | AC90～AC240V 50/60Hz |
| Alarm Contacts | AC250V 5A (Resistive Load) Alarm Points 4 Circuits Arbitrarily Assigned to the Upper or Lower Limit ON/OFF Control or Proportional Control Selectable |
| Dimensions | 140(W)×252(H)×125(D)mm |
| mass | Approx. 2.5kg |
| remarks | Optional: Outdoor hood mounting method: Wall mounting or pole mounting Compatible with each temperature compensation electrode |
